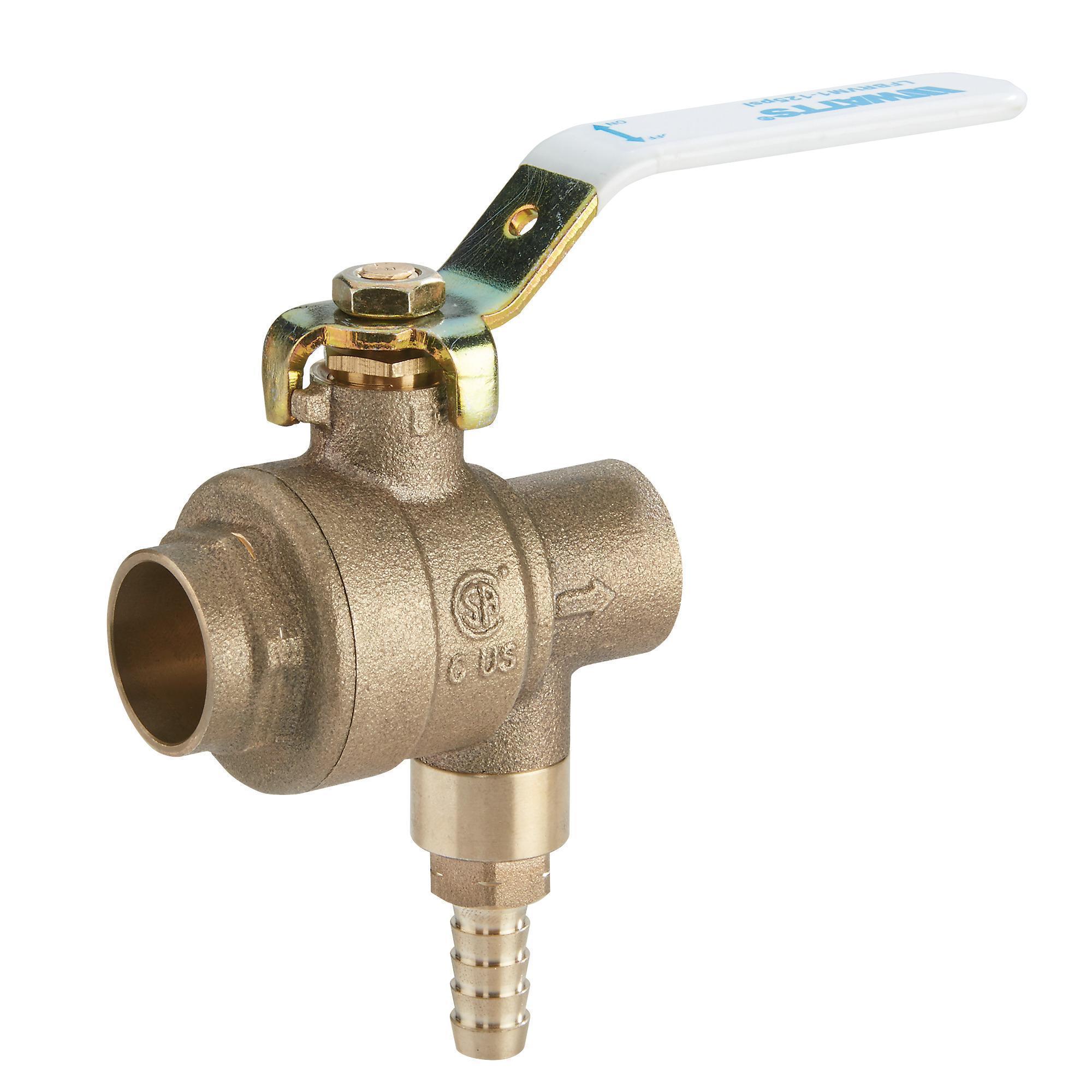

WATTS® 0125568 LFBRVM1 Combination Ball and Relief Valve, 3/4 in Nominal, C x C x Barb End Style, Copper Silicon Alloy Body, Full Port, Import

WALFBRVM1SSB MFG #: 0125568
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: C x C x Barb
  • Manufacturer Name: Watts Water Technologies
  • Nominal Size: 3/4 in
  • Port Type: Full
  • Series: LFBRVM1
  • Top to Inlet Center: 2-5/16 in
  • Trim Material: Brass Stem and Virgin PTFE Seat
This 3/4 in lead free combination ball valve and relief valve is used in commercial and residential applications on water heater installations. It consists of a lead free cast copper silicon full port body with 3/4 in C inlet and outlet, chrome plated lead free brass ball, blow-out proof lead free brass stem, PTFE seats, stem packing and stem thrust bearing, FKM relief ball, stainless steel relief spring, lead free brass adapter and zinc plated carbon steel handle. The relief valve outlet includes a drain tube connection with a 3/4 in barb fitting. It has a low profile design and can be installed in any position. It is for applications that require a means to shut-off the water supply to the water heater and for providing protection from excess water pressure caused by thermal expansion. The pressure rating is 600 psi and the pressure relief is set at 125 psi.
  • Features and More

Features

  • Easy installation - installs in any position
  • Low profile design
  • Blow-out proof stem
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Chrome plated brass ball

Application

  • Residential
  • Commercial and Industrial Applications

Standards/Approvals/Certifications

  • CSA Certified
  • IAPMO Listed
  • NSF/ANSI 61/8 Certified

Warranty

  • 1 year
