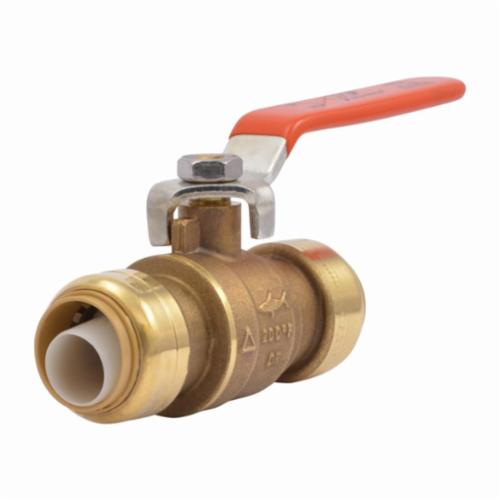

Sharkbite® UR22185 Ball Valve, 3/4 in Nominal, Push-Fit End Style, Brass Body, Full Port, EPDM Softgoods, Import

SHARKBALLI MFG #: UR22185
  • Actuator Type: Lever Operated
  • Body Material: Brass
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: Push-Fit
  • Inlet to Outlet Length: 3.62 in
  • Manufacturer Name: Reliance Worldwide Corporation
  • Media: Water
  • Nominal Size: 3/4 in
  • Port Type: Full
  • Pressure Rating: 200 psi
  • Softgoods Material: EPDM
  • Temperature Rating: 200 deg F
  • Trim Material: Brass Stem
SharkBite® Ball Valves are the easiest way to install or replace a shut-off valve into your potable water or hydronic water heating system. The push-fit connections allow you to join to Copper, PEX, CPVC or PE-RT pipe in any combination without a need for soldering, clamps, glue or unions. The valve is easily rotated after installation making it easier to reach the shut-off, or to work in tight spaces.
  • Features and More

Features

  • Convenient single lever control - makes them easy to use and encourages shut-off of water supply
  • Full port ball valve - allows water to flow freely through the valve
  • Instant push-to-connect connections for increased ease of use - no soldering, clamps, unions or glue required
  • Valve assembled to strict quality standards - measured thread engagement, measured torque
  • Brass body end retainer, zinc plated steel handle
  • DZR Lead free brass body
  • PTFE seat ring/packing
  • EPDM O-ring
  • https://youtu.be/s-Fwu-kY3NY

Application

  • For Potable Water or Hydronic Water Heating System

Standards/Approvals/Certifications

  • ASSE 1061
  • IAPMO Listed
  • IGC 157-2010
  • NSF/ANSI 61
  • NSF/ANSI 372-2010

Warranty

  • 2 Years Limited
