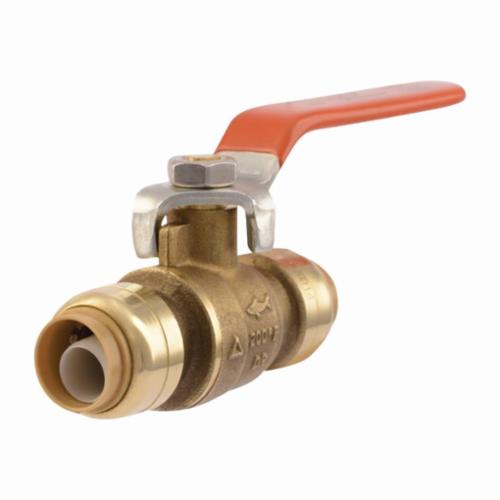

Sharkbite® 22222-0000LF Ball Valve, 1/2 in Nominal, Push-Fit End Style, Brass Body, Full Port, EPDM Softgoods, Import
SHARKBALLG
MFG #: UR22222
- Actuator Type: Lever Operated
- Body Material: Brass
- Country of Origin: CN
- Domestic/Import: Import
- End Style: Push-Fit
- Inlet to Outlet Length: 3.06 in
- Manufacturer Name: Reliance Worldwide Corporation
- Media: Water
- Nominal Size: 1/2 in
- Port Type: Full
- Pressure Rating: 200 psi
- Softgoods Material: EPDM
- Temperature Rating: 200 deg F
- Trim Material: Brass Stem
- Features and More
Features
- Convenient single lever control - makes them easy to use and encourages shut-off of water supply
- Full port ball valve - allows water to flow freely through the valve
- Instant push-to-connect connections for increased ease of use - no soldering, clamps, unions or glue required
- Valve assembled to strict quality standards - measured thread engagement, measured torque
- Brass body end retainer, zinc plated steel handle
- DZR Lead free brass body
- PTFE seat ring/packing
- EPDM O-ring
- https://youtu.be/s-Fwu-kY3NY
Application
- For Potable Water or Hydronic Water Heating System
Standards/Approvals/Certifications
- ASSE 1061
- IAPMO Listed
- IGC 157-2010
- NSF/ANSI 61
- NSF/ANSI 372-2010
Warranty
- 2 Years Limited
