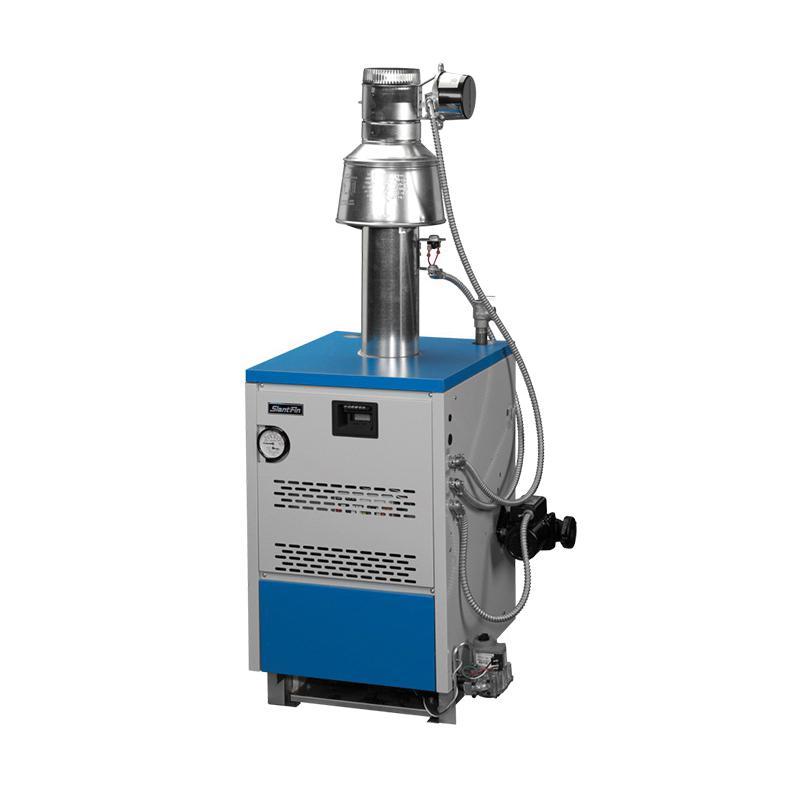

Slant/Fin® 24611211NV SE Series Hot Water Gas Fired Boiler, Natural Gas Fuel, 126000 Btu/hr Net IBR, 175000 Btu/hr Input, Damper Vent, Cast Iron Housing, Intermittent Ignition

SFSE175EDP MFG #: 24611211NV
  • AFUE Rating: 84 %
  • Dimensions: 26-5/8 in W x 19-3/4 in D x 51-3/4 in H
  • DOE Heating Capacity: 145000 Btu/hr
  • Flue Outlet Size: 6 in
  • Fuel Type: Natural Gas
  • Input Capacity: 175000 Btu/hr
  • Manufacturer Name: Slant/Fin Corporation
  • Net IBR Rating: 126000 Btu/hr
  • Series: SE Series, SE-175
  • Vent Type: Damper
The Sentinel™ boiler is a hot water gas boiler with a heat exchanger which has for years been a "workhorse" of the heating industry. The Sentinel™ is available for use with propane or natural gas. This boiler is popular with many heating contractors for performance and reliability.
  • Features and More

Features

  • Easy installation and reliable operation that natural draft design provides
  • High performance cast-iron heat exchanger
  • Specially shaped thermal pins promoting efficient heat transfer
  • Assembled with only durable metal push nipples
  • No mechanical combustion aids are required
  • Special port construction will not permit flame to lift or flash back
  • Atmospheric natural draft combustion

Application

  • Residential

Includes

  • Taco T007 Pump

Standards/Approvals/Certifications

  • 2021 DOE Complaint
  • AHRI Certified
  • ASME Specified
  • CSAus Certified
  • ETL Intertek
  • Prop 65: California

Warranty

  • 25 Years Limited Lifetime
