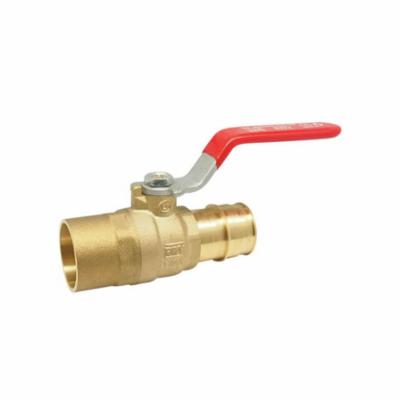

RWV® 5017AB 3/4 Ball Valve With Handle, 3/4 in, Barb x Solder, Brass Body, Regular Port, Double NBR Softgoods

RW5017ABI MFG #: 5017AB 3/4"
  • Ball Material: Chrome Plated Low Lead Brass
  • Body Material: Brass
  • End Style: Barb x Solder
  • Inlet to Outlet Length: 2.93 in
  • Manufacturer Name: Red-White Valve
  • Nominal Size: 3/4 in
  • Orifice Size: 1/2 in
  • Pressure Rating: 400 lb WOG
  • Series: 5017AB
  • Softgoods Material: Double NBR
  • Top to Inlet Center: 1.77 in
  • Trim Material: Low Lead Brass Stem and PTFE Seat
RWV® Ball Valve, Lead Free, Series: 5017AB, 3/4 in Nominal, Barb x Solder, 400 lb WOG, 15 to 160 deg F, Regular Port, 1/2 in Orifice, Chrome Plated Low Lead Brass Ball, 2.93 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, Double NBR Softgoods,
  • Features and More

Features

  • Blow-out proof stem
  • F1960 certifications for pex expansion pipe fittings
  • Double NBR O-ring/packing

Application

  • For use With PEX Tubing

Standards/Approvals/Certifications

  • ASTM-F1960
  • AB1953
  • ANSI/NSF-61-G/372
  • CSA B125.3 Certified
  • cCSAus Certified
  • TL Certified
  • UNS C27453 Body/Ball/Stem and ASTM-36 Handle
