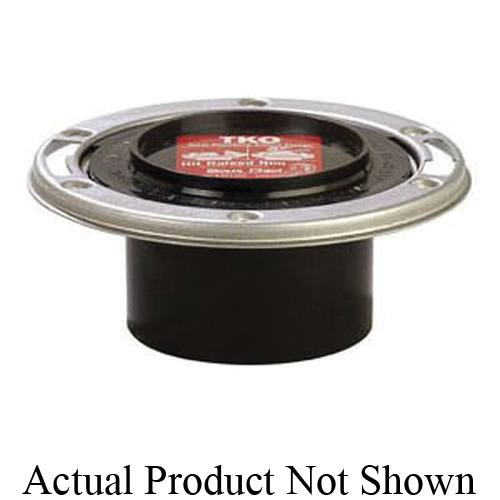

Sioux Chief TKO™ 884-ATMPK Open Closet Flange With Stainless Steel Swivel Ring, 4 in ID x 7.13 in OD, 3 x 4 in Hub Pipe, ABS, Domestic

PF5855ARP MFG #: 884-ATM
  • Country of Origin: US
  • Domestic/Import: Domestic
  • Inside Diameter: 4 in
  • Manufacturer Name: Sioux Chief
  • Material: ABS
  • Outside Diameter: 7.13 in
  • Pipe Size: 3 x 4 in Hub
  • Series: 884
  • Type: Open
Sioux Chief 884 Series TKO closet flanges shall be installed where necessary in drainage systems. Closet flange shall be fastened to floor and provide tabs or slots for fastening closet bolts to flange ring. Flange shall have a 3 in Sch. 40 hub connection which conforms to ASTM D2665 (PVC) or D2661 (ABS) and also install inside most 4 in pipe. Knockout cap must come out in one piece and shall be sized larger than drain opening, preventing it from falling down drain line. Closet flange shall hold a standard head test and be UPC listed.
  • Features and More


  • Patent no 5,377,361
  • Proven performance, improved design
  • Knockout will not break apart and cannot fall down drain pipe
  • Corrosion-resistant 430 stainless steel swivel ring is engineered for maximum strength
  • Holds five floors (22 psi) for head test
  • PVC flange body, 18 ga 430 stainless steel flange ring
  • 3 in hub connection, flush to floor, 2-1/2 in long tailpiece
  • 6 in screw hole center, 3 in knockout dia, 2 in overall H, 1-1/2 in tailpiece L
  • 18 ga 430 stainless steel flange ring
  • Stainless steel swivel ring


  • ASTM D2661
  • UPC Listed


  • Limited Lifetime
