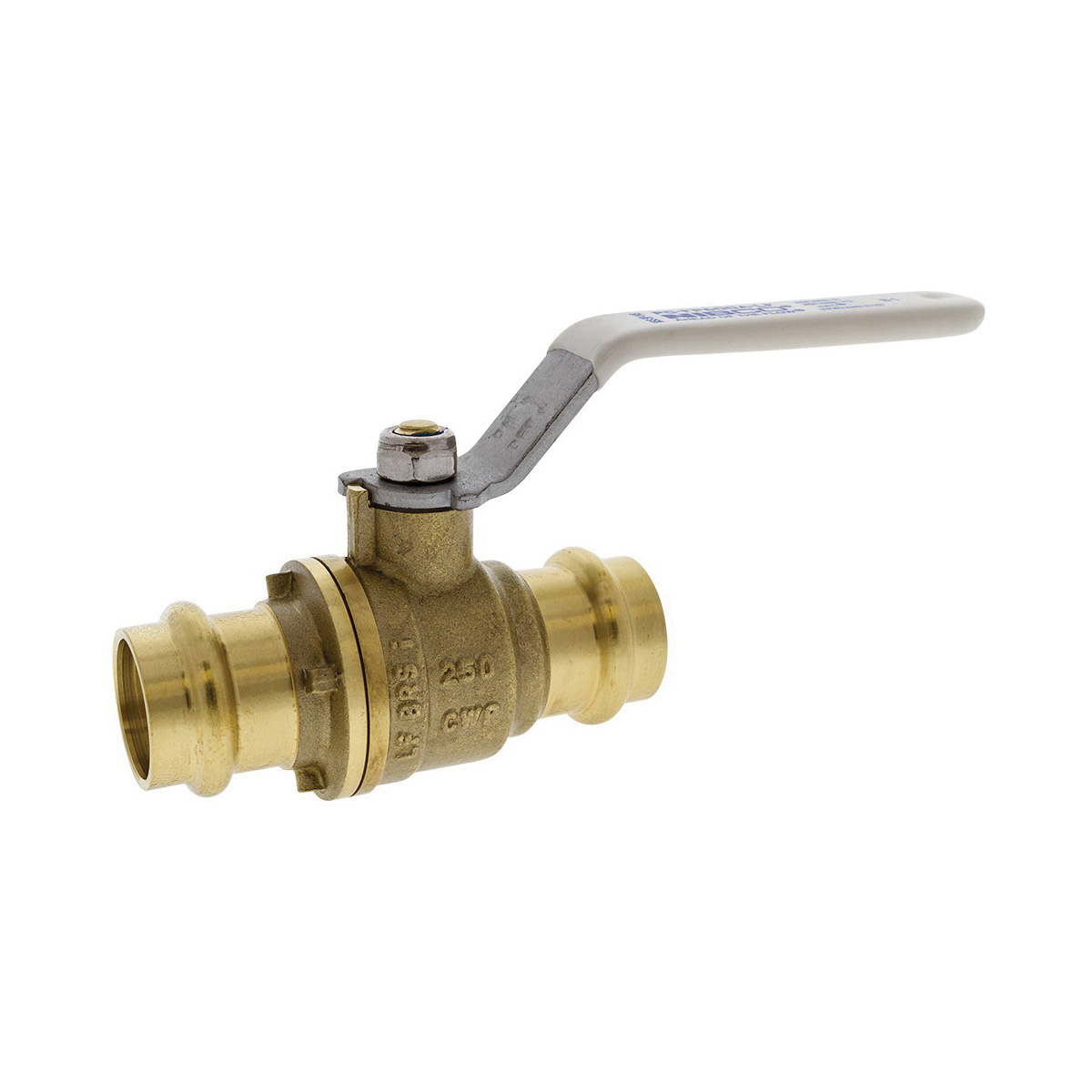

NIBCO® NF998XA PC-FP-600A-LF Ball Valve, 1 in Nominal, Female Press End Style, Brass Body, Full Port, EPDM/PTFE Softgoods, Import

  • Actuator Type: Standard Lever
  • Body Material: Brass
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: Female Press
  • Inlet to Outlet Length: 138.8 mm
  • Manufacturer Name: NIBCO Inc.
  • Nominal Size: 1 in
  • Orifice Size: 1.14 in
  • Port Type: Full
  • Pressure Rating: 200 psi
  • Series: PC-FP-600A-LF
  • Softgoods Material: EPDM/PTFE
  • Top to Inlet Center: 82 mm
  • Trim Material: Brass Stem
The NIBCO® Press System ball valve body is manufactured from lead free Brass alloy and is dezincification resistant (DZR). The ball valve is designed with press-to-connect end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The NIBCO® Press System is user friendly, quick and easy to install. When properly crimped a unique N witness mark is clearly visible. The lead free ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. NIBCO® Press System applies the proven performance of press technology to NIBCO® valves and fittings -- the most specified flow control products in the industry. The NIBCO® Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
  • Features and More


  • Copper-to-copper connections
  • Blowout-proof stem
  • Press leak-detection feature
  • Dezincification resistant
  • Not intended for gas use
  • EPDM O-Ring and Reinforced PTFE seat ring


  • IAPMO/ANSI Z1157
  • MSS SP-145
  • NSF/ANSI 61/372
  • PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to


  • 2 years Limited
