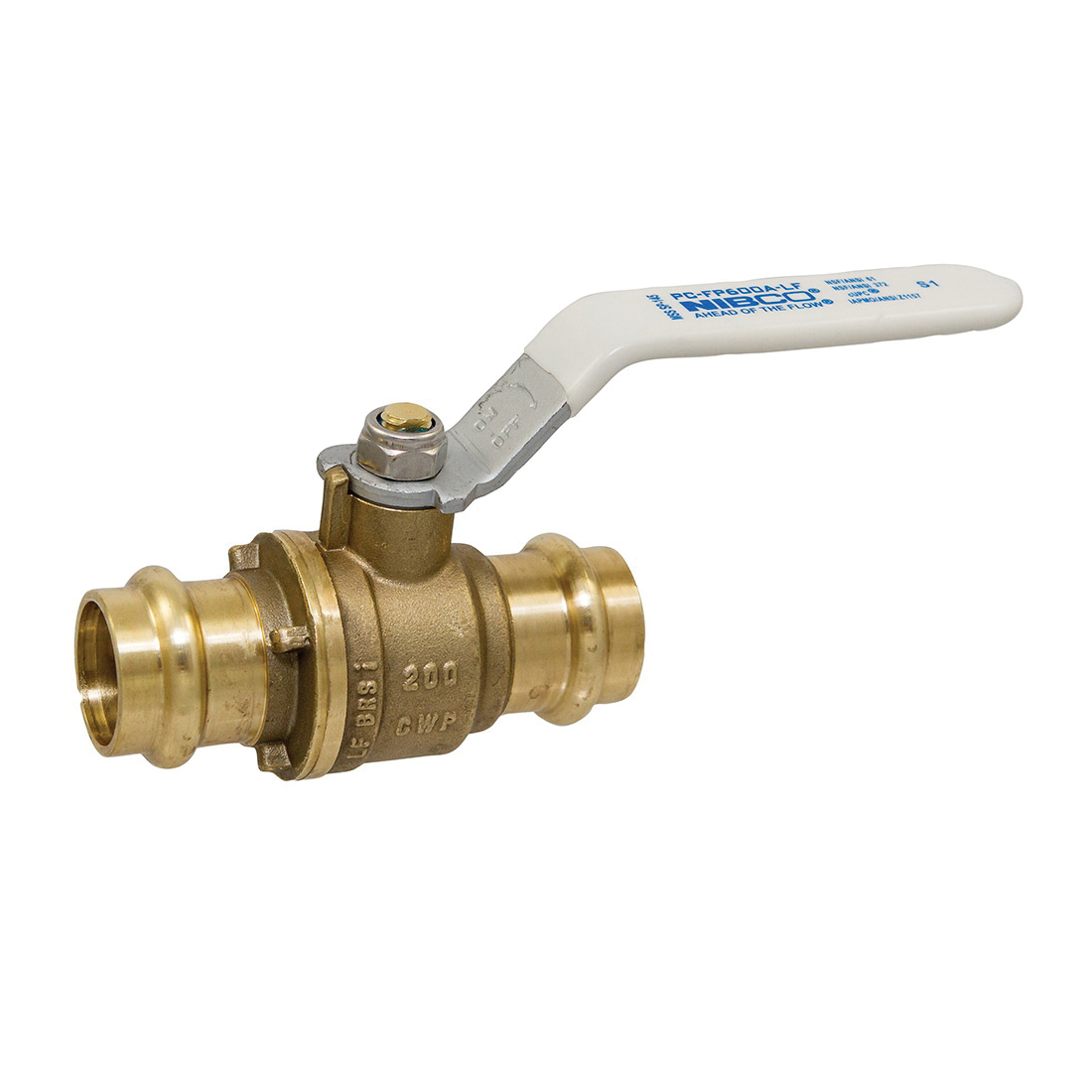

NIBCO® NF998X8 PC-FP-600A-LF Ball Valve, 3/4 in Nominal, Female Press End Style, Brass Body, Full Port, EPDM/PTFE Softgoods, Import

PCFP600ALFI MFG #: NF998X8
  • Actuator Type: Standard Lever
  • Body Material: Brass
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: Female Press
  • Inlet to Outlet Length: 138.8 mm
  • Manufacturer Name: NIBCO Inc.
  • Nominal Size: 3/4 in
  • Orifice Size: 0.883 in
  • Port Type: Full
  • Pressure Rating: 200 psi
  • Series: PC-FP-600A-LF
  • Softgoods Material: EPDM/PTFE
  • Top to Inlet Center: 82 mm
  • Trim Material: Brass Stem
The NIBCO® Press System ball valve body is manufactured from lead free Brass alloy and is dezincification resistant (DZR). The ball valve is designed with press-to-connect end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The NIBCO® Press System is user friendly, quick and easy to install. When properly crimped a unique N witness mark is clearly visible. The lead free ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. NIBCO® Press System applies the proven performance of press technology to NIBCO® valves and fittings -- the most specified flow control products in the industry. The NIBCO® Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
  • Features and More

Features

  • Copper-to-copper connections
  • Blowout-proof stem
  • Press leak-detection feature
  • Dezincification resistant
  • Not intended for gas use
  • EPDM O-Ring and Reinforced PTFE seat ring

Standards/Approvals/Certifications

  • IAPMO/ANSI Z1157
  • MSS SP-145
  • NSF/ANSI 61/372
  • PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm

Warranty

  • 2 Years Limited
