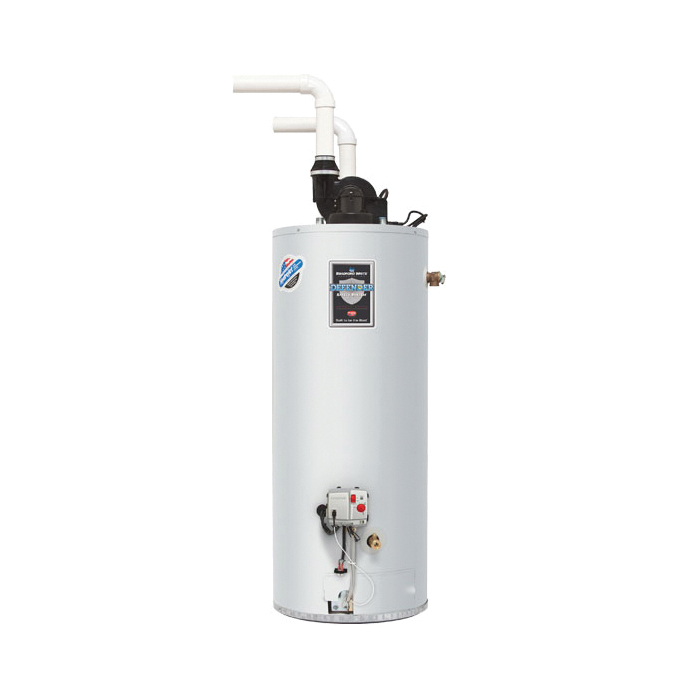

Bradford White® RG2PDV75H6N-475 Hi-Alt Gas Water Heater, 80000 Btu/hr Heating, 75 gal Tank, Natural Gas Fuel, Direct/Power Vent, 86 gph Recovery, Domestic

  • Country of Origin: US
  • Dimensions: 26 in Dia x 35-3/8 in D x 70 in H
  • Domestic/Import: Domestic
  • Energy Factor: 0.69
  • Fuel Type: Natural Gas
  • Gas Connection: 1/2 in
  • Heating Capacity: 80000 Btu/hr
  • Manufacturer Name: Bradford White
  • Pressure Rating: 150 psi
  • Recovery Rate: 86 gph
  • Ultra Low NOx: No
  • Vent Size: 3 x 4 in
  • Vent Type: Direct/Power
  • Water Connection: 3/4 in NPT
  • Features and More


  • Bradford White® ICON System™: intelligent gas control with proven millivolt powered technology and built-in piezo igniter
  • Enhanced performance
  • Advanced temperature control system
  • Intelligent diagnostics
  • Separate immersed thermowell
  • Closed combustion venting system: Power direct vent models are ideal for installations which lack sufficient are for combustion, such as new construction homes or additions which are tightly insulated, these models use a twin pipe system where combustion air is drawn from outside the building in one pipe, and combustion products are expelled to the outside in another pipe
  • Cast aluminum air intake boot: A cast molded air intake boot design provides exceptional durability during installation and operation
  • Horizontal and vertical venting
  • Flammable vapor sensor
  • Factory installed Hydrojet® sediment reduction system and FVIR defender safety System®
  • Vitraglas® lining
  • Insulation system
  • Water connections: 3/4 in NPT factory-installed true dielectric fittings extend water heater life and simplify water line connections
  • Side connect model
  • Factory installed heat traps
  • Protective magnesium anode rod
  • Low restriction brass drain valve
  • Hydronic and space heating
  • Power direct vent high input gas water heater
  • High altitude


  • Residential Application


  • Temperature and Pressure Relief Valve


  • AHRI Certified
  • ANSI Z21.10.1
  • ANSI Z21.10.3-2015
  • ASHRAE 90.1b
  • CEC Listed
  • CSA 4.3-2015
  • CSA International (Formerly AGA/CGA)
  • CSA LLC - Low Lead Compliant
  • Massachusetts Approved
  • NAECA Compliant
  • NSF 372
  • PROP65: Cancer and Reproductive Harm -


  • 6 Years Limited on Tank/6 Years Limited on Component Parts
