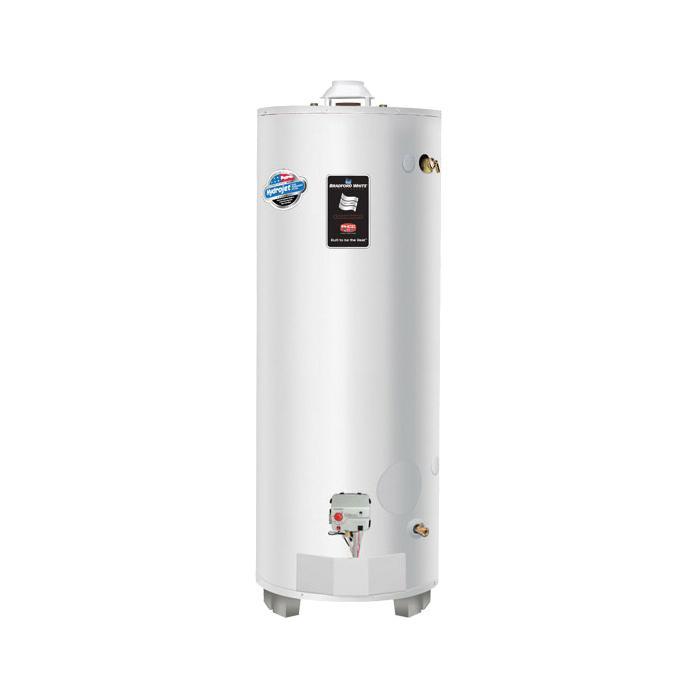

Bradford White® RG250H6N-475 High Input Hi-Alt Gas Water Heater, 65000 Btu/hr Heating, 48 gal Tank, Natural Gas Fuel, Atmospheric Vent, 70 gph Recovery, Domestic
BWRG250H6N
MFG #: RG250H6N-475
- Country of Origin: US
- Dimensions: 22 in Dia x 25-1/2 in D x 60 in H
- Domestic/Import: Domestic
- Energy Factor: 0.63
- Fuel Type: Natural Gas
- Gas Connection: 1/2 in
- Heating Capacity: 65000 Btu/hr
- Manufacturer Name: Bradford White
- Pressure Rating: 150 psi
- Recovery Rate: 70 gph
- Ultra Low NOx: No
- Vent Size: 4 in
- Vent Type: Atmospheric
- Water Connection: 3/4 in NPT
These water heaters utilize a draft diverter and are atmospherically vented, however they offer Extra Recovery. This translates to an increased amount of hot water available at a usable temperature in less time than normal.
- Features and More
Features
- Bradford White® ICON System™: intelligent gas control with proven millivolt powered technology and built-in piezo igniter
- Enhanced performance
- Advanced temperature control system
- Intelligent diagnostics
- Pilot on indication
- Separate immersed thermowell
- Factory installed Hydrojet® sediment reduction system and FVIR defender safety System®
- Vitraglas® lining
- Side connect model
- Non-CFC foam insulation
- Pedestal base
- Water connections: Factory-installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod
- 4 in snap lock draft diverter
- Low restriction brass drain valve
- Hydronic and Space Heating
- Atmospheric vent high input gas water heater
- High altitude
- Hydrojet® total performance system
Application
- Residential Application
Includes
- Temperature and Pressure Relief Valve
Standards/Approvals/Certifications
- AHRI Certified
- ANSI Z21.10.1-2014
- ASHRAE 90.1b
- CEC Listed
- CSA 4.1-2014
- CSA International (Formerly AGA/CGA)
- CSA LLC - Low Lead Compliant
- Massachusetts Approved
- NAECA Compliant
- NSF 372
- PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Warranty
- 6 Years Limited on Tank/6 Years Limited on Component Parts
