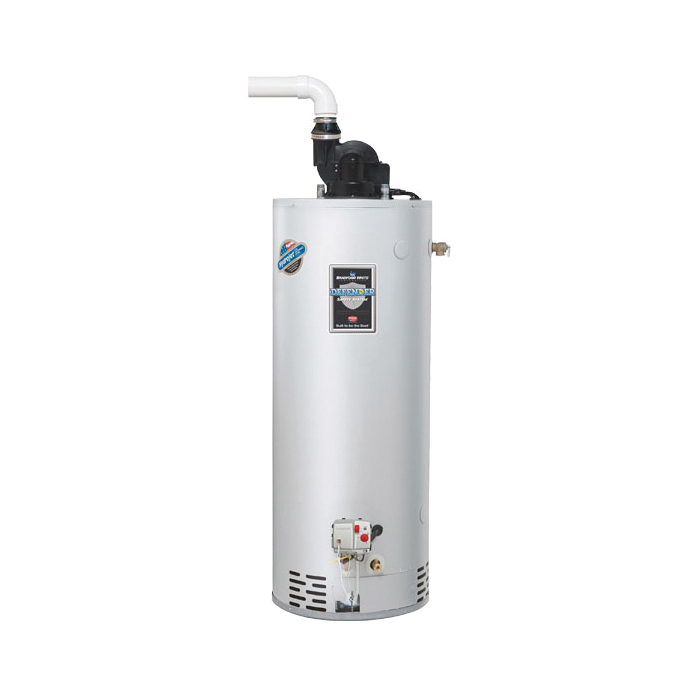

Bradford White® TTW® RG1PV40S6N-475 Hi-Alt Gas Water Heater, 40000 Btu/hr Heating, 40 gal Tank, Natural Gas Fuel, Power Vent, 43 gph Recovery, Domestic

  • Country of Origin: US
  • Dimensions: 20 in Dia x 25-15/16 in D x 57-5/16 in H
  • Domestic/Import: Domestic
  • Energy Factor: 0.61
  • Fuel Type: Natural Gas
  • Gas Connection: 1/2 in
  • Heating Capacity: 40000 Btu/hr
  • Manufacturer Name: Bradford White
  • Pressure Rating: 150 psi
  • Recovery Rate: 43 gph
  • Ultra Low NOx: No
  • Vent Size: 2 x 3 in
  • Vent Type: Power
  • Water Connection: 3/4 in NPT
  • Features and More


  • Bradford White® ICON System™: Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during stand-by periods (120 VAC)
  • Enhanced performance: Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
  • Advanced temperature control system: Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
  • Intelligent diagnostics: An exclusive green led light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
  • Power vent water heater: Designed for installations where atmospheric units cannot be used, exhaust gases are vented under positive pressure directly out of the building through the roof or the wall
  • Powerful blower motor: Our significantly quiet design has greater resistance to outside winds and the power to vent in many difficult venting situations
  • Horizontal and vertical venting: PVC, ABS or CPVC
  • Advanced ScreenLok® technology flame arrester design: Flame arrester is designed to prevent ignition of flammable vapor outside of the water heater
  • Flammable vapor sensor: Electronic sensor prevents burner operation if flammable vapors are detected
  • Maintenance free: No regular cleaning of air inlet openings or flame arrester is required under normal conditions
  • Sight window: Offers a view into the combustion chamber to observe the operation of the pilot and burner
  • Factory installed Hydrojet® total performance system: Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
  • Vitraglas® lining
  • Insulation system: Non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
  • Water connections: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
  • Low restriction brass drain valve: Durable tamper proof design
  • Protective magnesium rod
  • High altitude
  • FVIR defender safety System®


  • Residential Application


  • 10 ft 120 VAC Power Cord


  • AHRI Certified
  • ANSI Z21.10.1-2014
  • ASHRAE 90.1b
  • CEC Listed
  • CSA 4.1-2014
  • CSA International (Formerly AGA/CGA)
  • CSA LLC - Low Lead Compliant
  • Massachusetts Approved
  • NSF 372
  • PROP65: Cancer and Reproductive Harm -


  • 6 Years Limited on Tank/6 Years Limited on Component Parts
