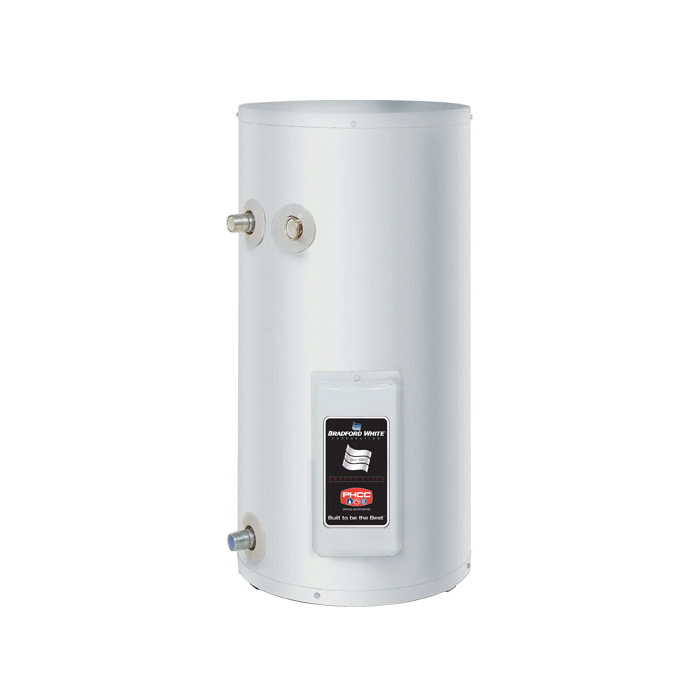

Bradford White® RE16U6-1NAL Utility Electric Water Heater, 6 gal Tank, 120 VAC, 1.5 kW Power Rating, 1 ph Phase, Domestic

  • ASME Yes/No: No
  • Country of Origin: US
  • Dimensions: 14 in Dia x 10.118 in H
  • Domestic/Import: Domestic
  • Manufacturer Name: Bradford White
  • Material: Steel
  • Phase: 1 ph
  • Power Rating: 1.5 kW
  • Pressure Rating: 150 psi
  • Recovery Rate: 7 gph
  • Series: RE16U6
  • Voltage Rating: 120 VAC
  • Water Connection: 3/4 in NPT
These compact models are, as the name implies, utility water heaters that provide smaller volumes of hot water where usage is intermittent or demand is lower.
  • Features and More


  • Fully automatic thermostat control: Fast acting surface-mount thermostat for automatic temperature control
  • Factory installed sensitive manual reset energy cut-off for safety to prevent overheating
  • Direct heat transfer with a single immersed element: Transfers heat directly and efficiently to the water
  • Vitraglas® lining
  • Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
  • 1 in non-CFC foam insulation: covers the sides and top of the tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connections: 3/4 in NPT factory-supplied true dielectric fittings extend water heater life
  • Located on the side for easier installation (Fittings packaged separately inside carton)
  • Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
  • Design evaluated by ETL in accordance with Part 280.707(d) of HUD mobile home construction and safety standards for energy efficiency
  • Alternate top water connections
  • Non-simultaneous operation


  • Residential Application


  • Temperature and Pressure Relief Valve


  • AHRI Certified
  • CEC Listed
  • CSA Certified
  • ETL Listed
  • Massachusetts Approved
  • NSF 372
  • UL 1453
  • PROP65: Cancer and Reproductive Harm -


  • 6 Years Limited on Tank/6 Years Limited on Component Parts
