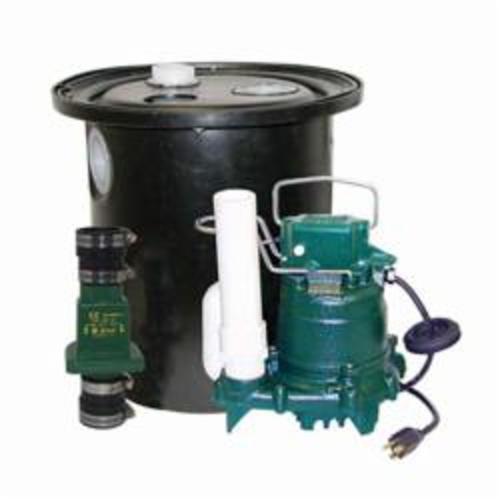

Zoeller® 105-0010 Drain Pump, 1-1/2 in NPT Outlet, 1/3 hp, 1 ph, Glass Filled Polypropylene

ZO105 MFG #: 105-0001
  • Cord Type: 3-Wire
  • Country of Origin: US
  • Dimensions: 19-9/16 in H
  • Frequency Rating: 60 Hz
  • Horsepower: 1/3 hp
  • Impeller Type: Non-Clogging Vortex
  • Manufacturer Name: Zoeller Company
  • Material: Glass Filled Polypropylene
  • Maximum Head: 19 ft
  • Motor Speed: 1550 rpm
  • Outlet Size: 1-1/2 in NPT
  • Phase: 1 ph
  • Series: 105
  • Voltage Rating: 115 VAC
This is our most versatile water collection system. No need to dig a sump pit or re-route plumbing drain lines. This compact system includes everything you need to remove water from areas without gravity drains. Excellent for bar sinks, laundry trays or condensate removal. There are no inlet filters to clean and easy compression fittings make for quick and trouble-free installations. As an added bonus, the P-trap can be located inside the tank if necessary.
  • Features and More


  • Passes laundry lint
  • Automatic, float-operated mechanical switch
  • 9 ft, 3-wire cord and plug
  • Stainless steel screws, guard, handle and switch arm
  • Passes 1/2 in spherical solids
  • Non-clogging vortex impeller
  • Glass-filled polypropylene base with built-in strainer


  • Laundry Tray Pump
  • Wet Bar Sink
  • Lavatory
  • Air Conditioning Condensate/Dehumidifier Water Removal
  • Dishwashers and Garbage Disposal


  • Automatic Pumps
  • Polypropylene Basin and Lid
  • Internal Discharge Pipe to Lid and Check Valve


  • CSA Certified
  • SSPMA Certified
  • UL Listed
