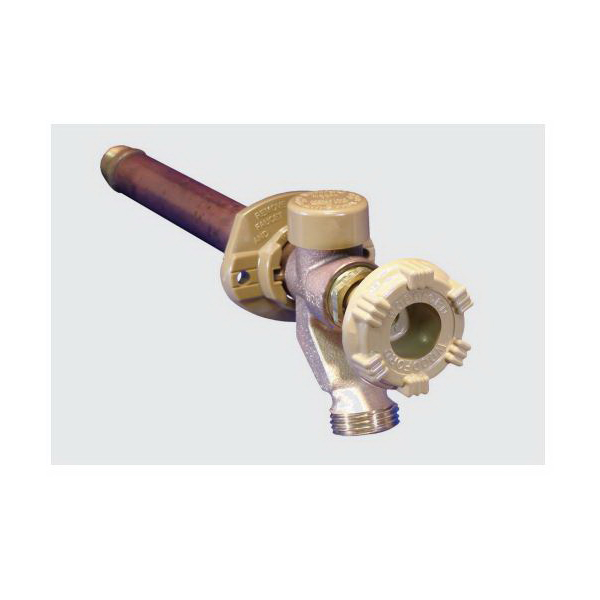

Woodford® 17W-12 Anti-Siphon Freezeless Wall Faucet, 1/2 in, Wirsbo® Tube, 12 in THK Wall, 125 psi

WOOD17W12 MFG #: 17W-12
  • Dimensions: 15/16 in Dia Inlet
  • Domestic/Import: Domestic
  • End Style: Wirsbo® Tube
  • Handle Type: Wheel
  • Manufacturer Name: Woodford Manufacturing
  • Nominal Size: 1/2 in
  • Pressure Rating: 125 psi
  • Type: Anti-Siphon Freezeless
  • Wall Thickness: 12 in
The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
  • Features and More


  • This unit offers anti-siphon protection
  • 3/4 in male hose thread nozzle
  • Stainless steel seat - eliminates wire draw
  • EPDM packing to prevent leaking
  • Full circle operating threads on valve body and retainer
  • No lead solder joints
  • Standard o-size washer valve seat
  • Powder-coated die-cast aluminum handle
  • Adjustable polycarbonate wall flange
  • Warning: Faucet must be installed with downward pitch toward nozzle and hose must be removed in freezing weather or faucet may freeze and burst
  • Model 17
  • https://youtu.be/r1IJFzxXdDQ


  • For irrigation purposes


  • ASSE 1019
  • CSA Certified
  • cUPC Certified
  • UPC Certified


  • Limited
