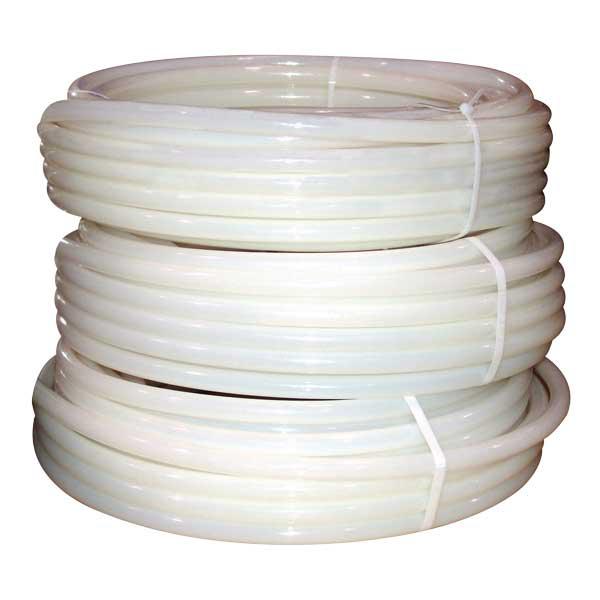

Uponor AquaPEX® F1060750 Tubing, 3/4 in Nominal, 0.671 in ID x 7/8 in OD x 300 ft Coil L, White, PEX

WIRAP300I MFG #: F1060750
  • Color: White
  • Inside Diameter: 0.671 in
  • Length: 300 ft
  • Manufacturer Name: Uponor
  • Nominal Size: 3/4 in
  • Outside Diameter: 7/8 in
  • Temperature Rating: 73.4 to 200 deg F
  • Working Pressure: 80 to 160 psi
Uponor AquaPEX® white tubing is suitable for use in hydronic heating applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the tubing. Uponor AquaPEX® white tubing is manufactured and listed to ASTM F876 and F877 and CSA B137.5, certified to NSF Standards 14 and 61 and listed by the Hydrostatic Stress Board of PPI at 200 deg F at 80psi, 180 deg F at 100psi and 73.4 deg F at 160psi. Uponor AquaPEX® tubing (1/2", 3/4", 1" and 1-1/4" only) is also listed to UL 1821 and ULC/ORD C199P and carries an additional rating of 120 deg F at 130psi. Uponor AquaPEX® white tubing is marked with the PEX 5106 designation as required by the most recent edition of ASTM F876-15a, indicating it exceeds ASTM F876 chlorine-resistance requirements for continuous-recirculation systems operating up to 140 deg F while also affording a 30-day UV-resistance level.
  • Features and More

Features

  • Cross linked polyethylene PEX-A engel method PEX 5106
  • 1.1 in at 10 deg F of 100 ft linear expansion rate
  • https://www.youtube.com/watch?v=Z_37XXFIWCE

Application

  • PEX-A Plumbing System
  • AquaSAFE™ Fire Safety System
  • Hydronic Piping System
  • Radiant Heating and Cooling System

Standards/Approvals/Certifications

  • ANSI/NSF 14/61
  • ASTM F876/F-877/F-1960/F-2023/E-84
  • ASTM E119/UL 263
  • ASTM E814/ULC S115
  • AWWA C904
  • CAN/ULC S102.2
  • CAN/ULC S101
  • CSA B137.5/B214
  • UL 18213
  • ULC/ORD-C199P3
