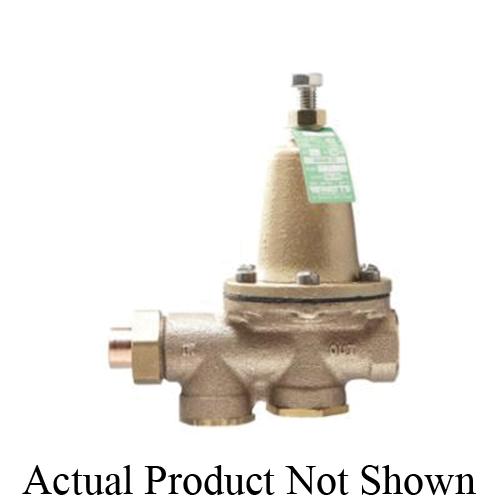

WATTS® 0009282 LF25AUB-S-Z3 Standard Capacity Pressure Reducing Valve, 3/4 in Nominal, Solder Union Inlet x FNPT Outlet End Style, 25 to 75 psi Pressure, Copper Silicon Alloy Body, Domestic
WALF25AUBSI
MFG #: 9282
- Country of Origin: US
- Dimensions: 7 in H
- Domestic/Import: Domestic
- End Style: Solder Union Inlet x FNPT Outlet
- Manufacturer Name: Watts Water Technologies
- Media: Water
- Nominal Size: 3/4 in
- Pressure Range: 25 to 75 psi
- Series: LF25AUB-S-Z3, LF25AUB-Z3
- Softgoods Material: EPDM Diaphragm
- Trim Material: EPDM
- Type: Standard Capacity
This 3/4 in lead free cast copper silicon water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, a solder union inlet by FNPT outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 deg F. Suitable for up to 300 psi, the pressure range can be adjusted from 25 to 75 psi. The standard setting is 50 psi.
- Features and More
Features
- Suitable for up to 300 psi
- Serviceable in line
- A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- Industry-trusted design with proven track record for longevity, reliability and flow performance
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- Sealed spring cage with stainless steel cage screws
- 50 psi standard reduced pressure
- Designed to reduce incoming water pressure to protect plumbing systems
- Designed to reduce water consumption for commercial, industrial and residential applications
Application
- Commercial and Residential
Standards/Approvals/Certifications
- ASSE 1003
- ANSI A112.26.2
- CSA B356
- IAPMO Listed
- MIL-V-1814B Type 1
- NSF/ANSI 61-G
- Southern Standard Plumbing Code
- UPC Listed
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Warranty
- 1 year
