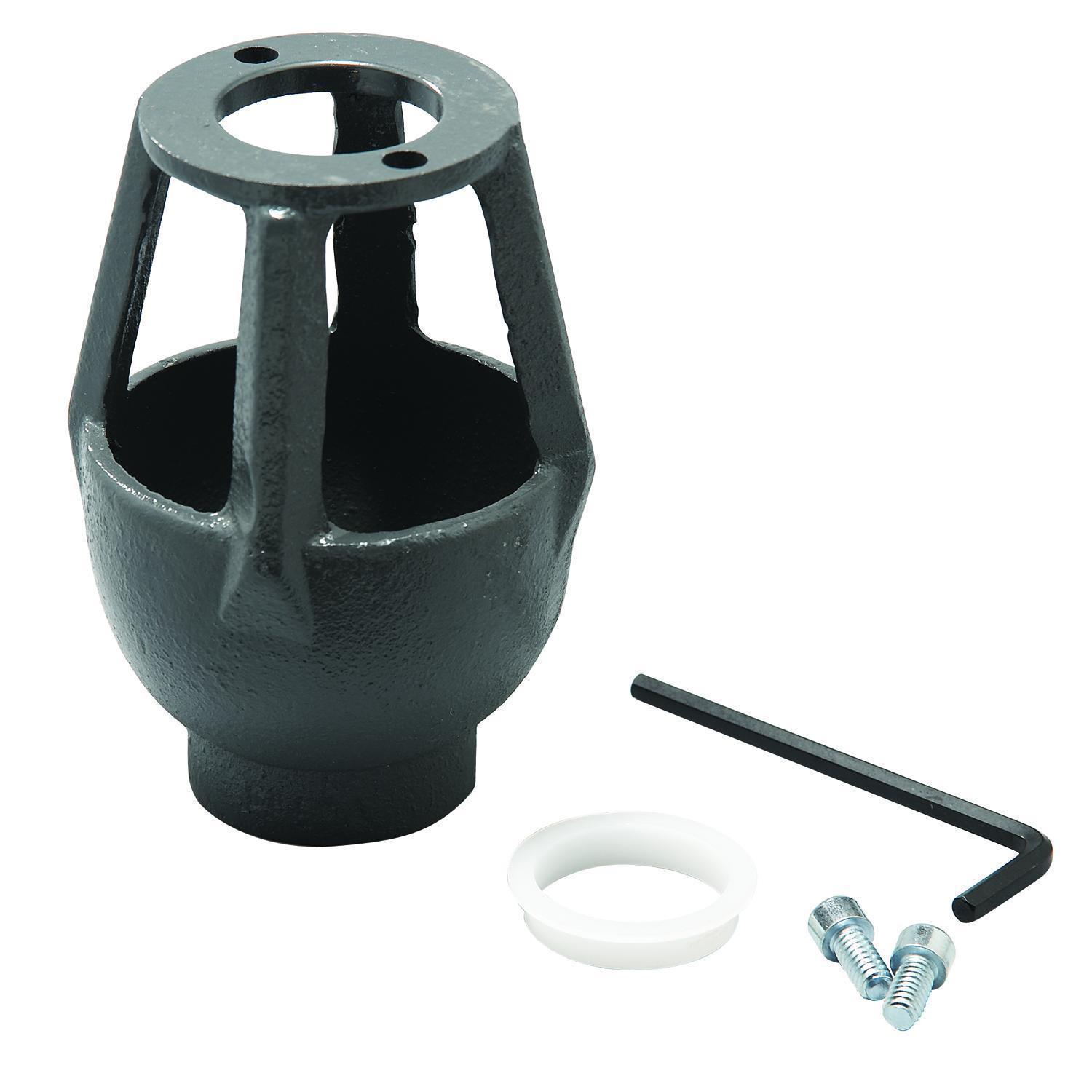

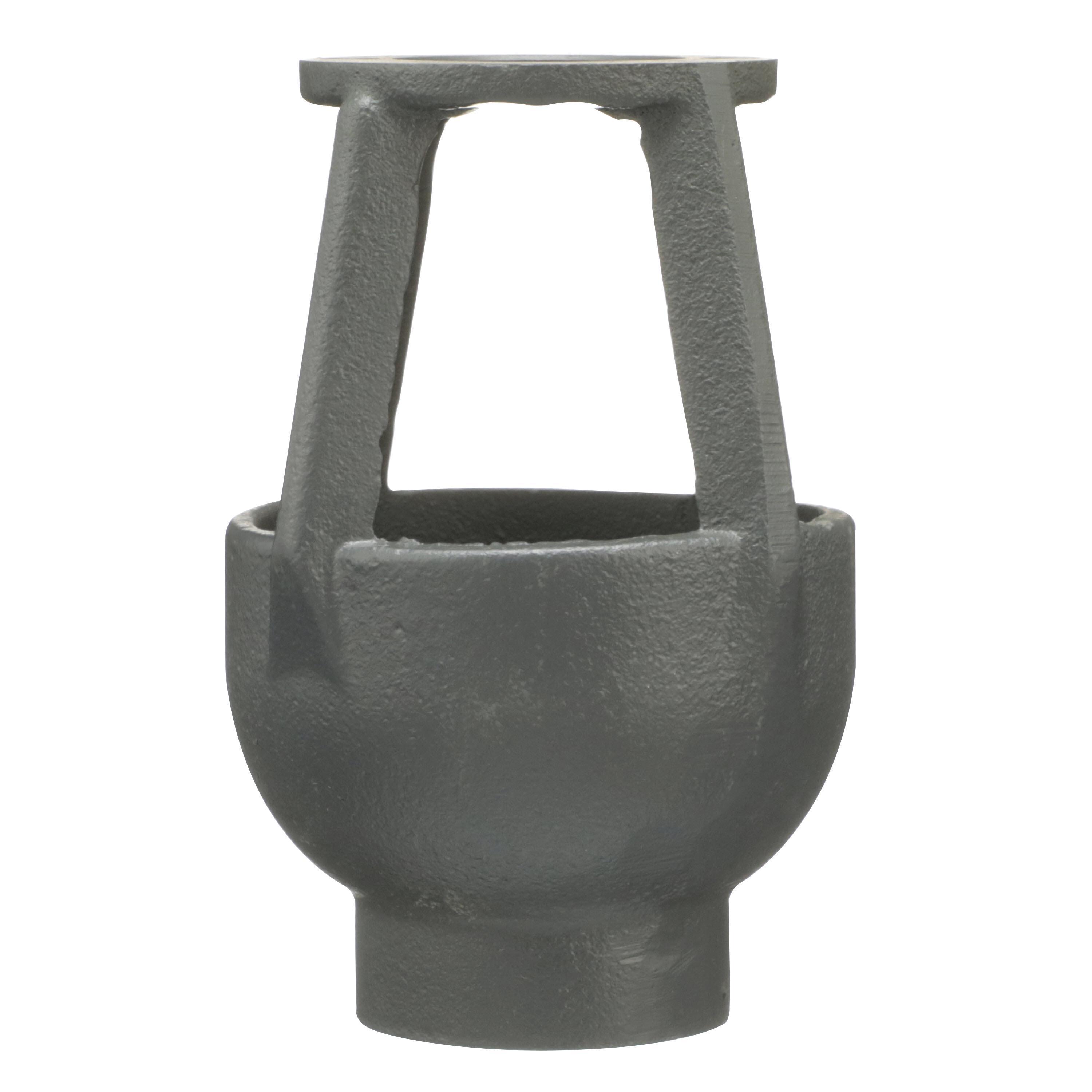

WATTS® 0881376 Air Gap, For Use With Model 009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly, 1 in FNPT, Cast Iron, Import
WAAGC
MFG #: AG-C
- Country of Origin: CN|US, TW
- Dimensions: 3-1/4 in W x 4-7/8 in H
- Domestic/Import: Import
- Manufacturer Name: Watts Water Technologies
- Specifications: 1 in FNPT
- Suitable For Use With: Model 009/909/LF909 3/4 to 1 in Reduced Pressure Zone Assembly, 009/LF009M2 1 to 1-1/2 in Reduced Pressure Zone Assembly and 1-1/4 to 2 in Reduced Pressure Zone Assembly
This air gap for reduced pressure zone assembly, 3/4-1 in series 009 and 909, 1-1-1/2 in series 009M2 and 1-1/4 to 2 in series 995, provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).
- Features and More
Features
- Metal construction
- Durable coating
- Diverts nuisance discharge
Includes
- Installation Hardware
Standards/Approvals/Certifications
- ASSE Listed
- FM Approved
- NSF Approved
- UL Listed
- ULC Listed
- USC Certified
- WQA Certified
Warranty
- Limited
