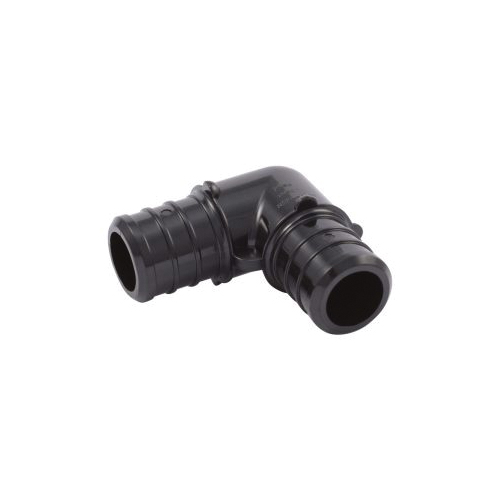

Sharkbite® UP256 90 deg Elbow, 3/4 in Nominal, PEX Barb End Style, Poly-Alloy, Import

  • Country of Origin: TW
  • Domestic/Import: Import
  • End Style: PEX Barb
  • Fitting/Connector Type: 90 deg Elbow
  • Manufacturer Name: Reliance Worldwide Corporation
  • Material: Poly-Alloy
  • Nominal Size: 3/4 in
  • Temperature Rating: 95 to 118 deg F
The SharkBite® PEX Poly Alloy Barb Elbow is an easy to install, low-cost solution to connect to PEX tubing at a 90 deg angle. The SharkBite® PEX Poly Alloy Barb fittings are compatible for potable water distribution and hydronic heating applications. These fittings can be used in both a stainless steel clamp system, or a copper crimp ring system as well (each sold separately).
  • Features and More


  • Advanced polymer solution for when corrosion may affect DZR brass products
  • Can be used with either SharkBite® clamp rings or SharkBite® crimp rings
  • Broad line of fittings, manifolds, regulator, thermostatic and ball valves: A typical barb system offers the lowest material cost
  • Clamp ring connections: The time saving clamp rings and tool offer reduced equipment cost, one tool clamps all sizes and the necessity to check each fitting ring with a go/no-go gauge is eliminated
  • Crimp ring connections: Copper crimp rings and the heavy duty tool with interchangeable jaws, does not require calibration and allows each joint to be checked with a go/no-go gauge
  • ASTM F2159 specification for plastic insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing and SDR9 polyethylene of raised temperature (PE-RT) tubing


  • Plumbing


  • ASTM F2159
  • ANSI/NSF 61
  • NSF 372
