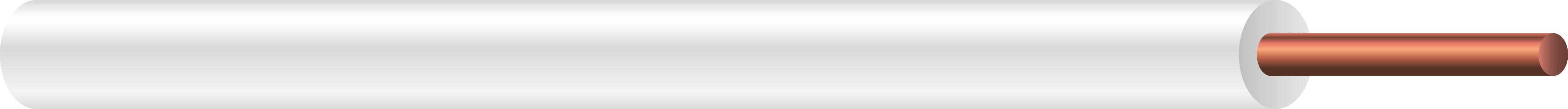

Southwire® 544910502 Golf Course Sprinkler Wire, 600 VAC, (1) 14 AWG Fully Annealed Bare Solid Copper Conductor, 500 ft L

TFTWIRE MFG #: 54491
  • Amperage Rating: 25 A
  • Conductor Type: Fully Annealed Bare Solid Copper
  • Country of Origin: US
  • Insulation Material: Polyethylene
  • Jacket Color: Yellow
  • Length: 500 ft
  • Manufacturer Name: Southwire Company
  • Outside Diameter: 0.157 in
  • Resistance: 2.57 Ohm
  • Strands: 1
  • Type: Golf Course
  • Voltage Rating: 600 VAC
As buried utility services such as gas, water, fiber phone lines use more plastics and less metals, they become more difficult to locate. Its critical to locate the line prior to excavating as interrupting service can be time consuming and costly to repair. When used with a detection system, Coleman Cable Royal® brand tracer wire permits trouble free detection and tracing of buried non-metallic pipe and communication systems. CCI tracer wire meets or exceeds the most recent reduction of hazardous substances (RoHS) and Registration, Evaluation, Authorization and Restriction (REACH) requirements.
  • Features and More


  • Excellent physical, electrical and thermal characteristics
  • High molecular weight polyethylene provides superior oil, chemical, crush, abrasion and moisture resistance
  • High molecular weight linear low-density polyethylene (HMWLLDPE) insulation
  • Tough jacket
  • Fully annealed bare copper meeting ASTM B-8


  • For underground golf course sprinkler wire applications
  • tracer wire or lawn sprinkler systems wire
  • location
  • identification and detection of buried utilities services
  • including gas
  • water
  • fiber optics and dog containment


  • RoHS Compliant
  • UL Listed
  • ANSI/NEMA WC-70-2009/ICEA S-95-658-2009
  • EPA 40 CFR, Part 26, Subpart C, Heavy Metals per Table 1, TCLP Method
