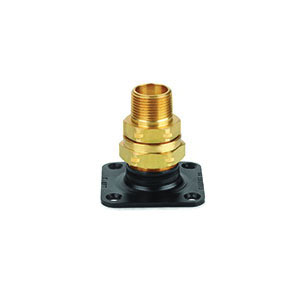

Gastite® FlashShield™ XR3TRM-11-12 XR3™ Termination Fitting With Termination Fitting, 3/4 in Nominal, Compression x MNPT End Style, 2.7 in L, Brass
TFFSTRM1112
MFG #: XR3TRM-11-12
- Dimensions: 2-5/8 in OD
- End Style: Compression x MNPT
- Length: 2.7 in
- Manufacturer Name: Titeflex
- Material: Brass
- Nominal Size: 3/4 in
- Series: XR3™
XR3 fittings are designed with a patent pending feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no O-rings or gaskets, the reusable brass components provide a reliable metal-to-metal seat.
- Features and More
Features
- Metal lock for enhanced continuity
- Tool-less flare design, no special tools are required
- Metal-to-metal seal, with no split rings, O-rings or gaskets
- Self-guiding assembly to ensure a perfectly even flare
- Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut
- All components are fully reusable
- Termination fittings create a fixed-point stub-out on a wall or floor surface
- MNPT adapter, bushing, termination nut and corrosion-resistant steel flange
Standards/Approvals/Certifications
- CSA: ANSI LC
- CSA 2728525
- ICC-ES Report No. PMG 1066 and PMG 1155
- IAPMO File No. C-3250
- ICC Evaluation Report No. PMG 1019
