Tekmar® 090 In-Slab Snow/Ice Sensor, -30 to 170 deg F, Import

TEKMAR090
  • Country of Origin: CA
  • Dimensions: 3-7/16 in OD x 1-3/4 in H
  • Domestic/Import: Import
  • Manufacturer Name: Watts Water Technologies
  • Temperature Rating: -30 to 170 deg F

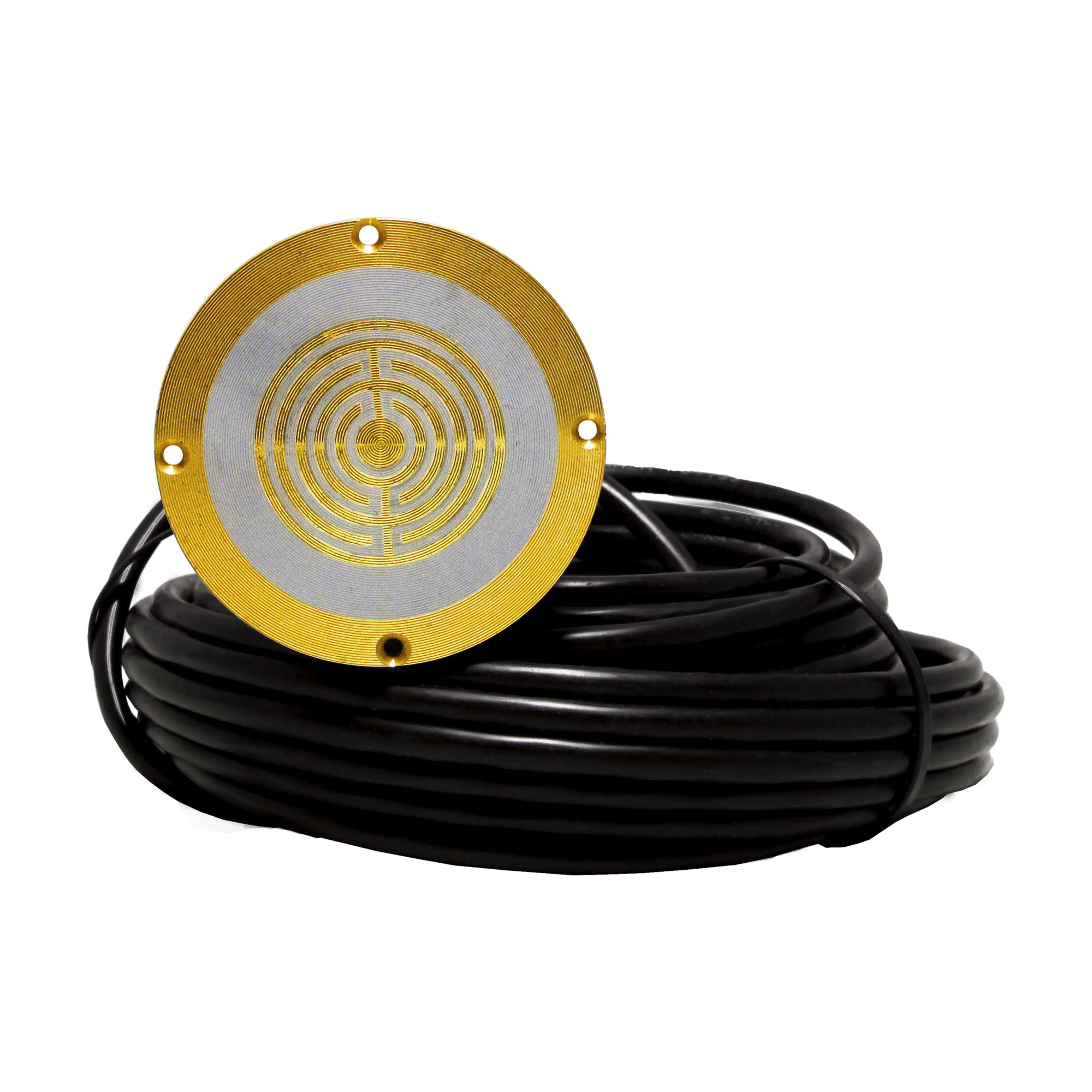

The Snow/Ice Sensor 090 is an in ground sensor used with Tekmar® snow melting controls to automatically detect snow or ice on a driveway or walkway. The 090 has 65 ft (20 m) of wire. This product can be used in applications ranging from residential driveways to commercial building fronts such as emergency access entries. This sensor allows Tekmar® snow melting controls to automatically operate the snow/ice melt system only when snow or ice is present, while also providing slab temperature feedback to the control.
  • Features and More

Features

  • Automatic snow/ice detection
  • Designed for long life in driveway and walkway installations
  • Slab temperature sensing
  • 15000 lb distributed load, non-impact, installed in concrete according to the manual
  • CSA cUS with tekmar Snow Melting Controls

Includes

  • 4 #4-40 7/16 in Machined Stainless Steel Screws
  • 4 #6-32 3/8 in Flathead Slotted Stainless Steel Screws and 65 ft 5 Conductor Stranded Wire with Polyethylene Jacket

Standards/Approvals/Certifications

  • CSA/cUS Certified

Warranty

  • 3 years Limited
