Taco® 006-B4 6 Series Bronze Cartridge Circulator Pump, 0 to 11 gpm Flow Rate, 3/4 in C Inlet x 3/4 in Outlet, 115 VAC, 1 ph Phase

TA006B

Amperage Rating: 0.52 A
Bearing Type: Carbon
Cord Type: 6 ft Line
Country of Origin: US
Dimensions: 5-1/8 in L x 3-15/16 in W
Frequency Rating: 60 Hz
Impeller Type: Non-Metallic
Inlet Size: 3/4 in C
Manufacturer Name: Taco
Maximum Head: 9-1/2 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Sweat
Outlet Size: 3/4 in
Phase: 1 ph
Series: 6 Series
Type: Bronze
Voltage Rating: 115 VAC

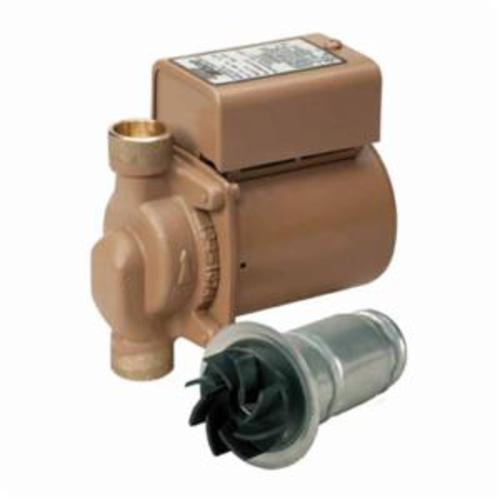

The compact Taco® 006 cartridge circulator is designed for circulating hot and chilled fresh water in a wide range of open and closed loop applications. Its unique, field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides quiet, efficient operation and unmatched reliability. Available in low-lead bronze, sweat or stainless steel, threaded or union connections.

Features and More

Features

Standard high capacity output compact design
Direct drive - low power consumption
Unique replaceable cartridge design - field serviceable
Unmatched reliability - maintenance free
Low-lead bronze construction with sweat
Quiet, Efficient Operation
No Mechanical Seal
Self Lubricating

Application

For Radiant Heating Systems
Domestic Water Systems
Chilled Water Cooling
Zoning with Circulators
Hydro-Air Fan Coils and Hydronic Heating System

Standards/Approvals/Certifications

NSF Appoved
UL Listed
NSF Certified

Warranty

3 Years
