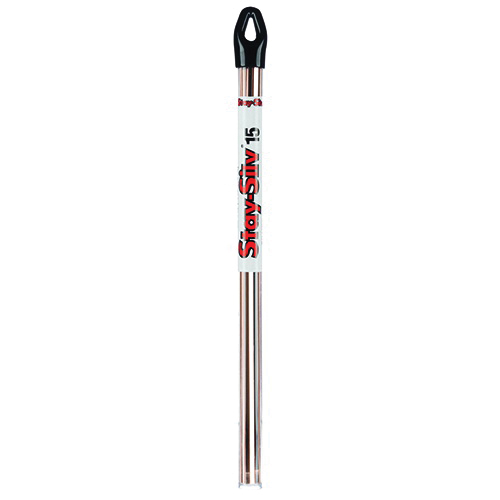

Harris® 15620F1 15 Series Brazing Filler, 1/8 in Dia x 20 in L, 28 lb Container Stick Tube Container

SOL15LB1 MFG #: 15620F1
Harris® 15620F1 15 Series Brazing Filler, 1/8 in Dia x 20 in L, 28 lb Container Stick Tube Container
  • Applicable Materials: Brazing Low Nickel, (10% Maximum), Copper/Nickel Base Metal
  • Brazing Range: 1300 to 1500 deg F
  • Chemical Composition: Silver, Phosphorus, Tin, Copper
  • Container Size: 28 lb
  • Container Type: Stick Tube
  • Country of Origin: US
  • Diameter: 1/8 in
  • Length: 20 in
  • Manufacturer Name: Harris Products Group
  • Series: 15 Series
For many years the standard of the industry, the 15% silver alloy has proven its value. This filler metal is excellent for situations in which close fit-up does not exist, and where thermal expansion and service vibration are involved.
  • Features and More

Features

  • Stay silv 15 brazing filler metal is a frequent choice for brazing copper, especially in brazing air conditioning and refrigeration connections
  • 17.4 electrical resistivity
  • 9.9 electrical conductivity
  • 1190 deg F solidus melting temperature
  • 1480 deg F liquids melting temperature
  • The higher the fluidity rating, the faster the alloy flows within the melting range
  • Stay silv 15 also meets federal specification QQ-B-654A, grade III
  • 3 fluidity rating
  • 0.002 in or 0.006 in recommended joint clearance
  • 0.05 in thickness

Standards/Approvals/Certifications

  • ANSI/AWS A5.8 Class BCuP-5
  • ASME SFA 5.8 Class BCuP-5
  • ISO 17672 CuP 284
  • QQ-B-654A BCuP-5
