Sloan®

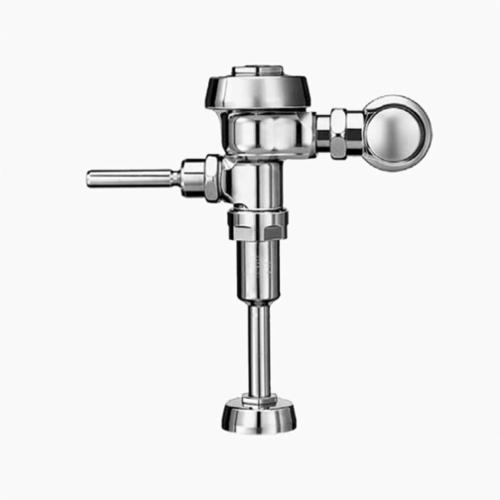

Sloan® Royal® 3912697 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

SL18605ROYAL MFG #: 3912697
Sloan® Royal® 3912697 186 Single-Flush Manual Exposed Flushometer, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
  • Connection Location: Top Spud
  • Country of Origin: US
  • Domestic/Import: Domestic
  • Finish/Color: Polished Chrome
  • Fixture Type: Urinal
  • Flush Rate: 0.5 gpf
  • Handle Type: Non-Hold Open Oscillating
  • Inlet Size: 3/4 in IPS
  • Manufacturer Name: Sloan Valve Company
  • Pressure Rating: 15 to 80 psi
  • Rough-In Size: 11-1/2 in
  • Series: 186
  • Spud Coupling: 3/4 in
  • Type: Single-Flush
  • Valve Design: Diaphragm
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic,
  • Features and More

Features

  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents urinal from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Integrity of the product is maintained with the vandal resistant stop cap
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
  • Exposed urinal flushometer, for 3/4 in top spud urinals

Standards/Approvals/Certifications

  • ADA Compliant
  • ASSE 1037
  • ASTM Specified
  • BAA Compliant
  • cUPC Listed
