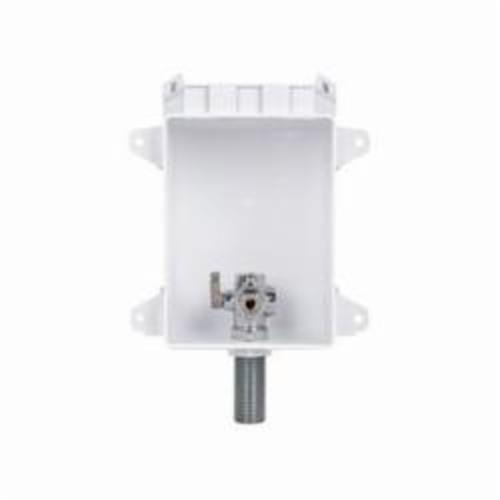

Sioux Chief OxBox™ 696-G1010WF Ice Maker Outlet Box, 1/2 in F1960 PEX Grip™ Inlet, 1/4 in Compression Outlet, ABS, Import

  • Country of Origin: CN
  • Dimensions: 5-3/4 in W x 7-1/4 in H
  • Domestic/Import: Import
  • Inlet Size: 1/2 in
  • Inlet Type: F1960 PEX Grip™
  • Manufacturer Name: Sioux Chief
  • Material: ABS
  • Outlet Size: 1/4 in
  • Outlet Type: Compression
  • Pressure Rating: 250 psig
  • Series: 696
Sioux Chief 696 and 696 series OxBox™ washing machine, ice maker and lavatory outlet box valves shall be used where necessary in plumbing supply systems. Units shall allow for various 1/2 in supply line inlet connections. Units shall be equipped with quarter-turn operation. Valves shall be chrome plated. Valves shall be available with our without water hammer arresters.
  • Features and More


  • Boxes mount securely to stud or over studs
  • Durable ABS stands up to jobsite abuse
  • Box mounts easily to stud for top or bottom supply
  • High quality quarter-turn ball valve
  • The debris cover protects valves from drywall mud and paint during construction
  • 100 psi max testing air pressure
  • ABS frame, galvanized steel bracket, stainless steel arrester body, piston made of polypropylene with two EPDM o-rings, piston lubrication made of dow-corning, 111 FDA approved silicone compound, chrome-plated forged brass valve body
  • Without hose
  • Standard pack (supply box, frame, bracket, debris cover)


  • ASME A112.18.1
  • ASSE 1010 Listed
  • IPC Certified
  • IAPMO Listed
  • UPC Listed
