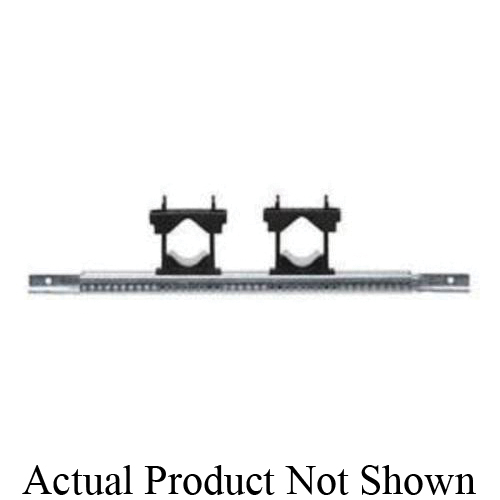

Sioux Chief PowerBar™ 523-1620 Universal Bracket, Steel, Galvanized, Domestic

SIOUX5231620 MFG #: 5231620
  • Country of Origin: US
  • Dimensions: 0.529 in H x 0.602 in W
  • Domestic/Import: Domestic
  • Finish: Galvanized
  • Manufacturer Name: Sioux Chief
  • Material: Steel
  • Series: 523-16
Sioux Chief 523-16 Series PowerBar™ universal bracketing system shall be used where necessary for supporting pipe or stub outs in residential and commercial applications. Bracket shall be designed to adjust telescopically from 9 to 16 in and include dual fastening tabs on each end. Pilot holes shall be provided on three sides of the bracket measuring 1 in. Bracket shall be manufactured using pregalvanized steel to resist rust. Bracket assembly shall include screws for fastening tabs, and optional UV-resistant adjustable channel clamps with elastomer inserts for securing and supporting pipe, tube, cable, etc. Bracketing system shall be compatible with copper, PEX and CPVC.
  • Features and More

Features

  • Patent # 6,446,915
  • Patent # 6,402,096
  • Galvanized steel bracket and tough plastic clamp are strong and support tube or pipe without bowing
  • Available with one, two or three touch down clamp pre-loaded to reduce installation time
  • Shorter bracket expand to fit opening from 9 to 16 in
  • Clamp secure 1/4 to 1 in CTS copper, CPVC or PEX
  • No screw
  • Nylon 66, UL-94 V2 flame rating channel clamp
  • (8) 1 in zinc plated, pan head Phillips with drill tip screw
  • Thermoplastic elastomer (TPE) clamp insert
  • 20 ga steel
  • http://www.youtube.com/watch?v=Dvl34DeuTTo

Includes

  • (1) Bracket
  • (2) TouchDown™ Clamp
  • (2) Channel Clamp

Standards/Approvals/Certifications

  • IAPMO Certified
  • UPC Listed
