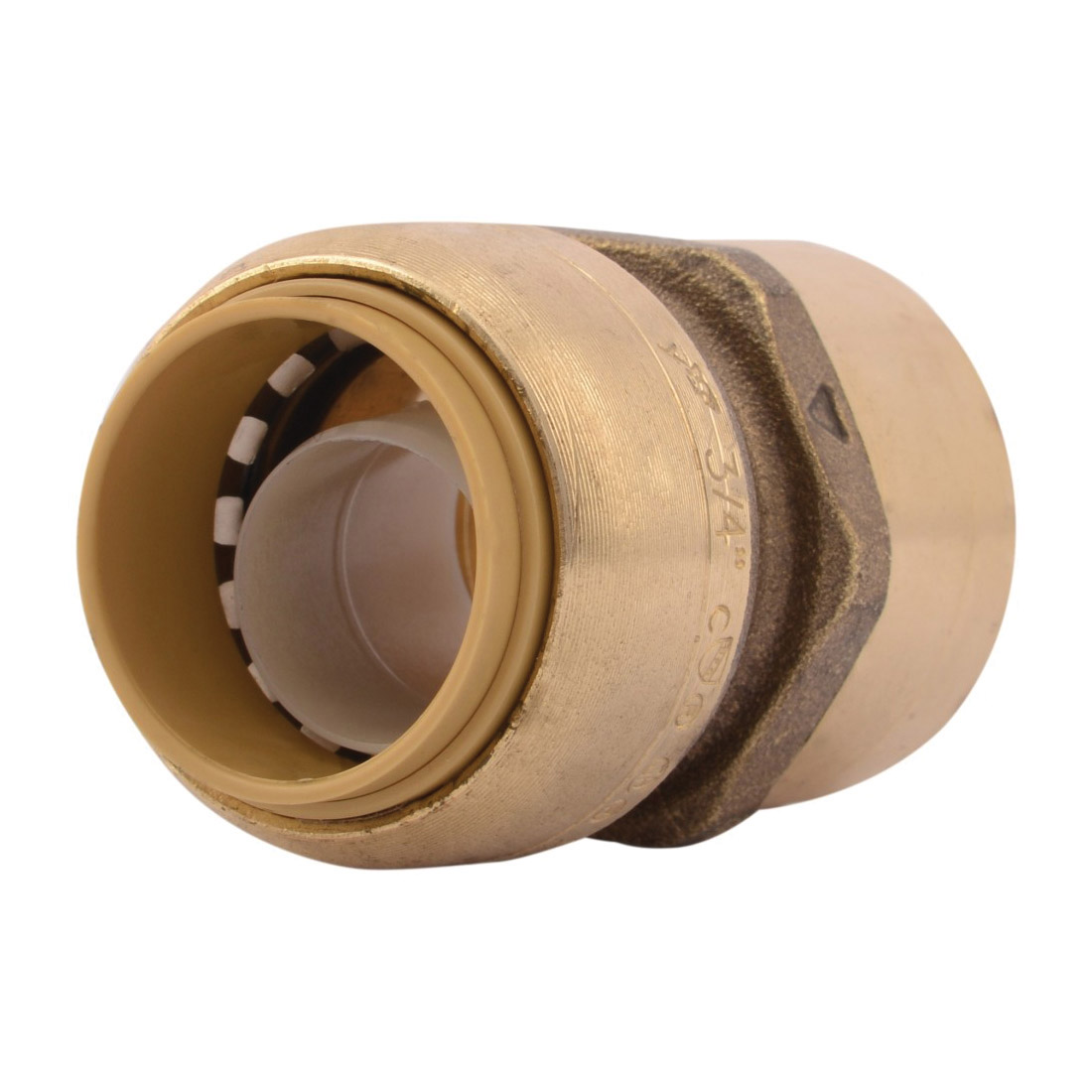

Sharkbite® UR088 Adapter, 3/4 in Nominal, FNPT End Style, Lead-Free DZR Brass
Part #: SHARKFIPI
MFG #: UR088
SharkBite® Female Connectors combine innovative push-to-connect design with a standard FNPT adapter on the opposite end. The push-fit end is compatible with copper, PEX, CPVC or PE-RT pipes and can be installed with no solder, glue, unions or tools required. These fittings are rated to 200 deg F and 200 psi.
Brand : Sharkbite®
Country of Origin : AU
Dimensions : 1.3 in H x 1.3 in W x 2.1 in L, 1.88 in L
Domestic/Import : Import
End Style : FNPT, Push-Fit x FNPT
Finish : Natural Brass/Polished Chrome
Features
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion effort, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
Application
- Residential and commercial potable water
- recirculation
- hydronic heating/cooling (up to 50% glycol concentration) and direct burial
Standards/Approvals/Certifications
- ASSE 1061
- CSA B125.3
- NSF/ANSI 14
- NSF/ANSI/CAN 372
- ASTM E84
- CAN/ULC S102.2
- UL 263
- ASTM E119
- CAN/ULC S102
Warranty
- 25 Years
