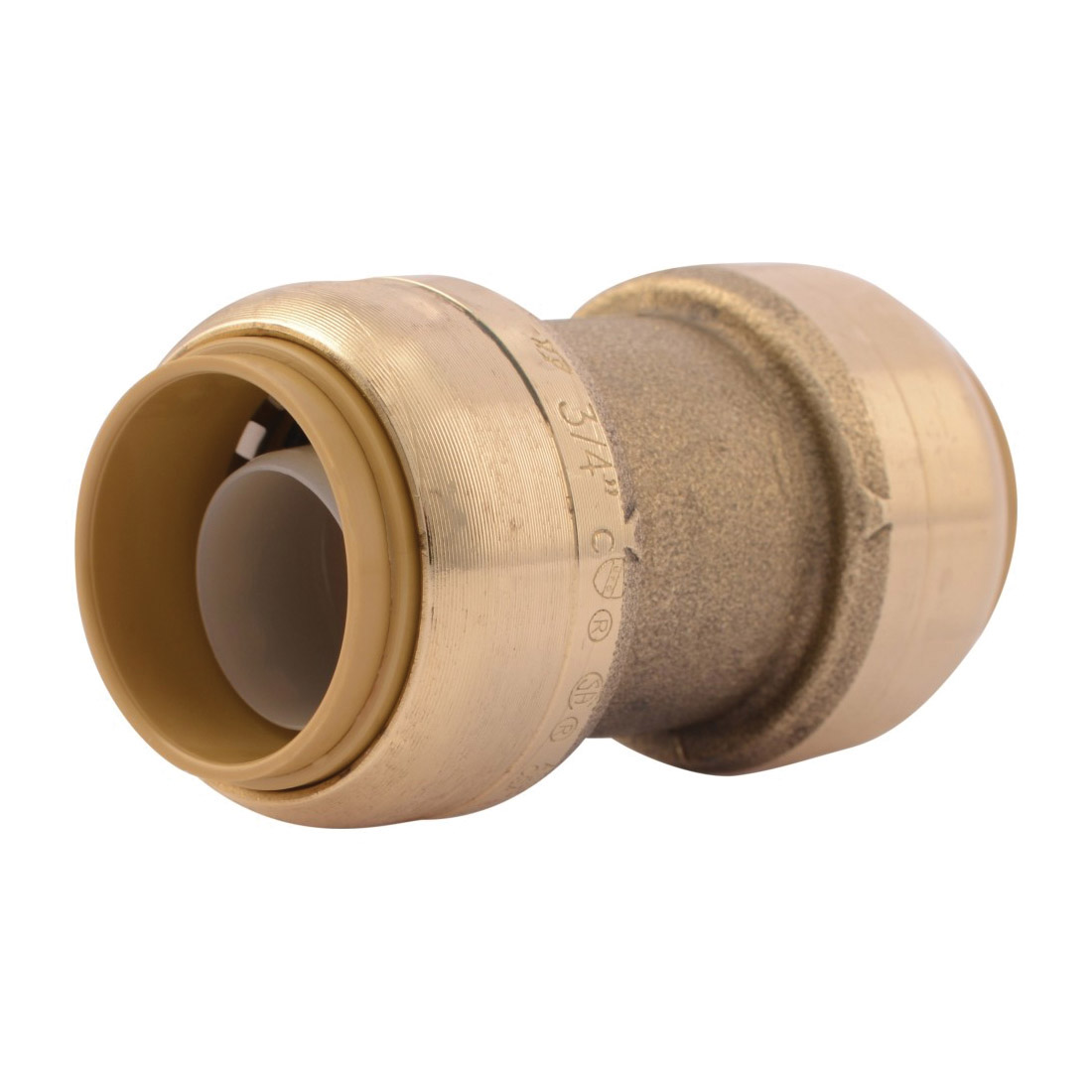

Sharkbite® UR016 Max™ Coupling, 3/4 x 3/4 in Nominal, Push-to-Connect End Style, DZR Brass
Part #: SHARKCOUPI
MFG #: UR016
The SharkBite® straight coupling is the easiest plumbing fitting to join any combination of Copper, PEX, CPVC, PE-RT or SRD9 HDPE pipe together. With no soldering, clamps, unions or glue required, it's as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi.
Brand : Sharkbite®
Country of Origin : AU
Dimensions : 1.3 in H x 1.3 in D, 2.36 in L
Domestic/Import : Import
End Style : Push-Fit, Push-to-Connect
Finish : Natural Brass/Polished Chrome
Features
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion effort, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
Application
- Behind-the-wall with no access panels
- Underground when wrapped in silicone tape
- Service & repair
- Pipe transitions
Standards/Approvals/Certifications
- ASSE 1061
- CSA B125.3
- NSF/ANSI 14
- NSF/ANSI/CAN 61
- NSF/ANSI/CAN 372
- ASTM E84
- CAN/ULC S102.2
- UL 263
- ASTM E119
- CAN/ULC S101
Warranty
- Limited
