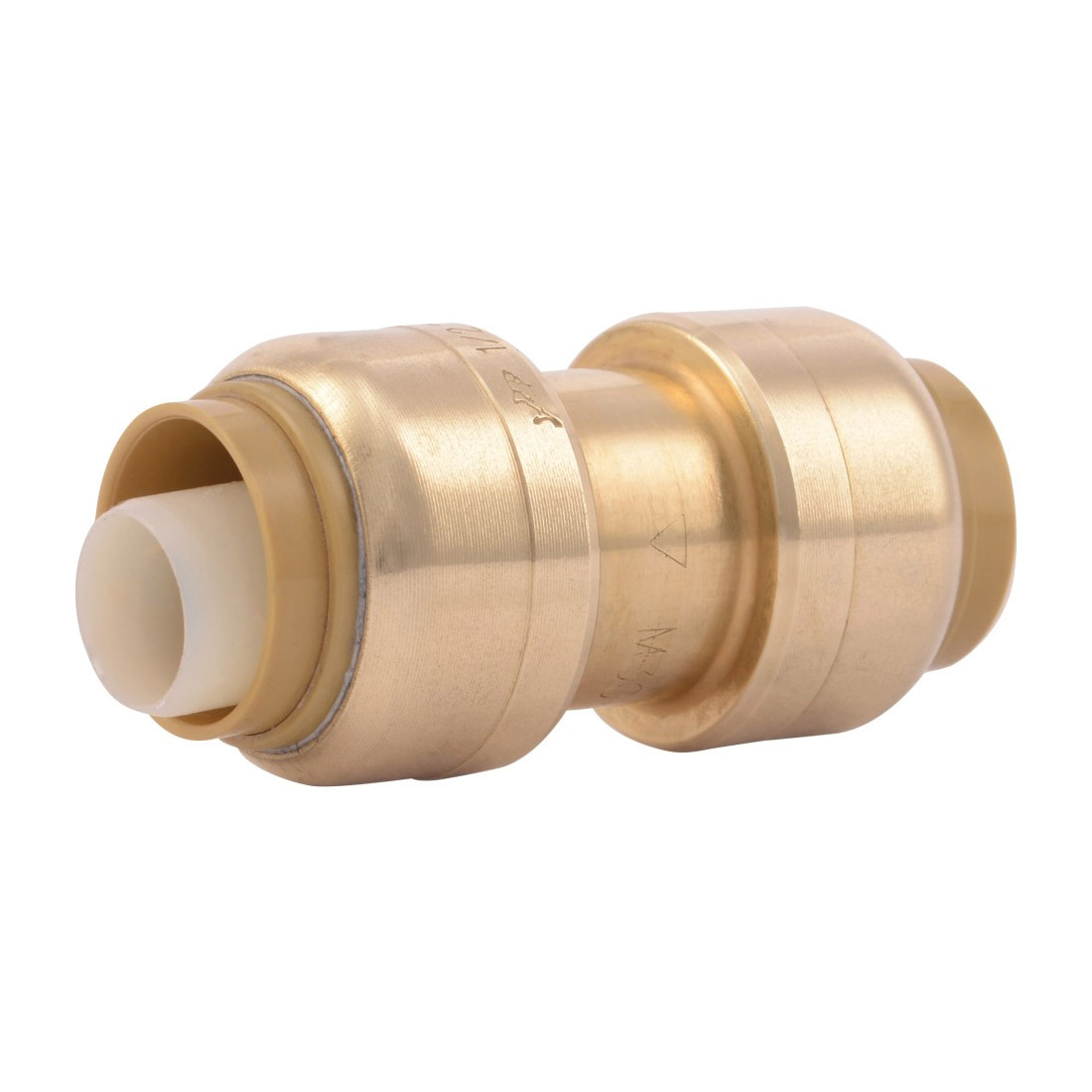

Sharkbite® U008LF Straight Pipe Coupling, 1/2 in Nominal, Push-Fit End Style, Brass, Import
Part #: SHARKCOUPG
MFG #: UR008
The SharkBite® straight coupling is the easiest plumbing fitting to join any combination of Copper, PEX, CPVC, PE-RT or SRD9 HDPE pipe together. With no soldering, clamps, unions or glue required, it's as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi.
Brand : Sharkbite®
Country of Origin : AU
Dimensions : 2 in L
Domestic/Import : Import
End Style : Push-Fit
Finish : Natural Brass/Polished Chrome
Features
- Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
- Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
- Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
- Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
- Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
- Approved to be used underground and behind walls without access panels
- Designed for hydronic heating as well as potable water distribution
- EPDM O-ring
- Stainless steel grab ring
- Polysulfone tube support liner
- Potable water service
- For use with copper, CPVC and pex pipe
- 0.938 in D insertion
- https://youtu.be/lgdBv5BK5dQ
Standards/Approvals/Certifications
- ASSE 1061
- CSA B125.3
- IAPMO Listed
- IPC and cUPC Listed
- NSF/ANSI 372-2010/14/61
Warranty
- 25 years Limited
