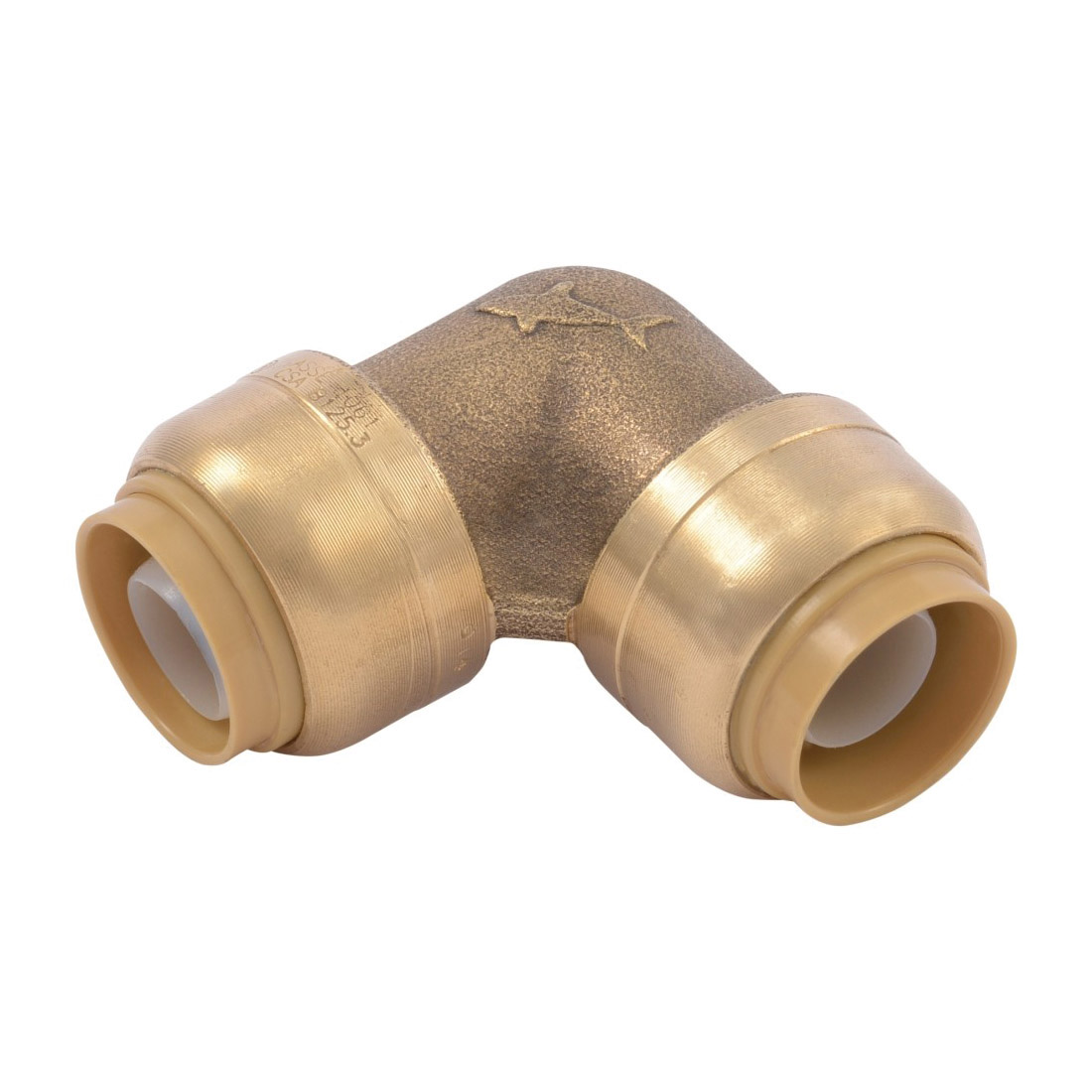

Sharkbite® UR248A Elbow, 90 deg Elbow, 1/2 in Nominal, Push-to-Connect End Style, Brass
Part #: SHARK90G
MFG #: UR248A
SharkBite Max Push-to-connect fittings are the fastest way to connect PEX, copper, CPVC, PE-RT or HDPE. A newly designed stainless steel collet retainer deliver additional strength and durability and provides a 400 PSI pressure rating. SharkBite Max fittings do not require a PEX tube liner and a re-engineered body allows you to insert the pipe using less force and greater ease. No soldering, clamps, unions, glue or special tools required. After inserting the pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The fitting can be rotated after installation for quick adjustments and removing the fitting is just as fast with a disconnect tool, allowing fittings to be changed or reused.
Brand : Sharkbite®
Country of Origin : AU, US
Domestic/Import : Import
End Style : Push-Fit, Push-to-Connect
Finish : Natural Brass/Polished Chrome
Fitting/Connector Type : 90 deg Elbow
Features
- Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
- Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
- Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
- Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
- Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
- Approved to be used underground and behind walls without access panels
- Designed for hydronic heating as well as potable water distribution
- EPDM O-ring
- Stainless steel grab ring
- Polysulfone tube support liner
- Potable water service
- For use with copper, CPVC and pex pipe
- 0.938 in D insertion
- Watch Video
Standards/Approvals/Certifications
- ASSE 1061
- CSA B125.3
- IAPMO/IPC/cUPC/UPC Listed
- NSF/ANSI 372-2010/14/61
Warranty
- 25 years Limited
