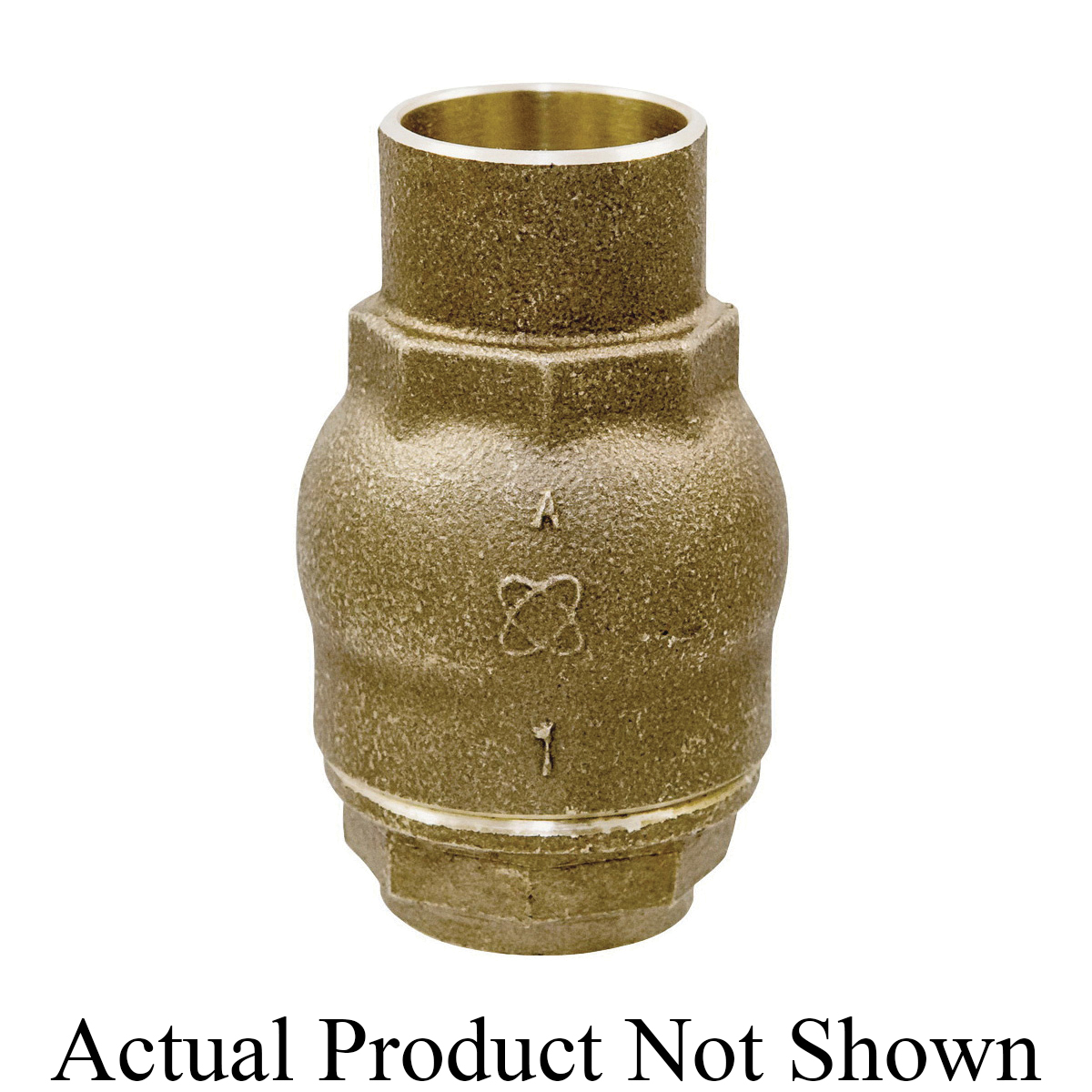

NIBCO® Ring Check® NJ7Q0X8 S-480-Y-LF Lift In-Line Check Valve, 3/4 in Nominal, Solder End Style, 125 lb, Low Lead Compliance: Yes, Bronze Body, Domestic

  • Actuator Type: Spring
  • Body Material: Bronze
  • Country of Origin: US
  • Domestic/Import: Domestic
  • End Style: Solder
  • Inlet to Outlet Length: 2-1/4 in
  • Low Lead Compliance: Yes
  • Manufacturer Name: NIBCO Inc.
  • Nominal Size: 3/4 in
  • Pressure Class: 125 lb
  • Pressure Rating: 250 psi
  • Series: S-480-Y-LF
  • Trim Material: Stainless Steel/PTFE Seat Disc
  • Type: Lift
The NIBCO® Ring Check® valve is constructed of high quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The Ring Check® valve is uniquely designed with an in-line, spring assisted self-closing disc. The lift check valve prevents backflow by automatically closing when fluid reverses direction. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The NIBCO® Ring Check® valve has solder end connections for ease of installation. This check valve may be installed in horizontal positions or vertical with flow moving up. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO® INC. 5-year 125% limited warranty.
  • Features and More


  • PTFE resilient seat disc
  • Stainless steel guide rod and spring
  • NIBCO® double oval lead-free body marking


  • Commercial and Residential Construction


  • MSS SP-139
  • NSF/ANSI 61/372
  • PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.


  • 5 Years Limited
