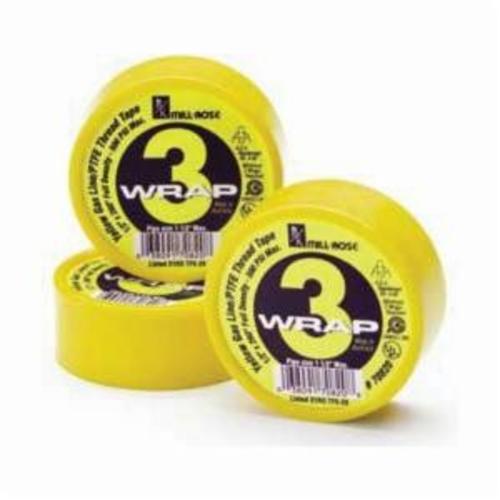

Cleanfit 70820 3-Wrap Thread Seal Tape, 260 in L x 1/2 in W x 0.004 in THK, PTFE
Part #: MILTAPE
MFG #: 70820
Mill-Rose 3-Wrap Yellow Gas Seal Tape is a PTFE thread sealing tape designed specifically for gas lines. This is a full or maximum-density thread sealing tape. Mill-Rose 3-wrap yellow gas seal tape is approved by relevant authorities and used by the gas industry world-wide. It's color-coded yellow so fitters and inspectors can easily recognize it as an approved tape.
Brand : Cleanfit
Length : 260 in
Manufacturer Name : The Mill-Rose Company
Maximum Operating Temperature : 500 deg F
Minimum Operating Temperature : -450 deg F
Thickness : 0.004 in
Features
- 99 percent PTFE < 1 percent pigment composition
- > 100 percent elongation
- 10 to 17 N/sq-mm tensile strength
- Certified to comply with the provisions of A-A58092 (ASG), UL listed 31RO, Australian gas Association (AGA) 3226
- Pressure rating: in tests conducted by an independent laboratory Mill-Rose 3-wrap yellow gas seal tape was found to seal fittings carrying natural gas at pressures up to 4347 psi or 30000 kPa when applied as per instructions
- Note: pressure ratings are relative to the quality and torque of the fittings and the amount of tape used
- -400 to 500 deg F PTFE is completely stable up to 500 deg F
Application
- Ideally suited for natural gas
- propane and butane lines
- Use on pipe made from galvanized steel
- iron
- brass
- copper
- aluminum
- stainless steel
- polyethylene
- polypropylene
- PVC
- CPVC
- ABS and fiberglass and Do not use Gas Thread Seal Tape on oxygen systems
Standards/Approvals/Certifications
- AGA 3226
- ASG A-A58092
- cCSAus Listed
- UL 31RO
