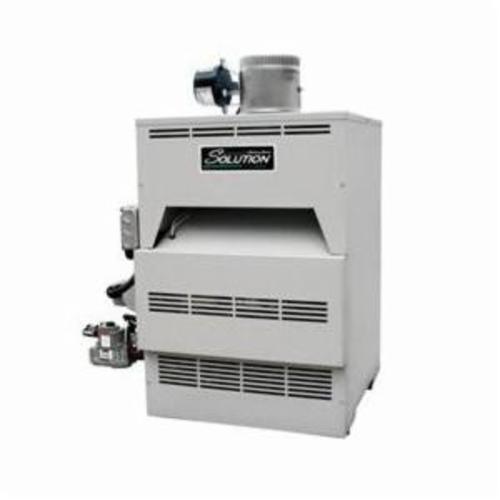

Lochinvar® Solution™ CBN075 Heating Boiler, Natural Fuel, 54 MBtu/hr Net IBR, 75 MBtu/hr Input, Automatic Vent, Intermittent Electronic Ignition
LOCCBN075
- AFUE Rating: 0.84
- Amperage Rating: 2 A
- Dimensions: 21-1/2 in L x 15-1/2 in W x 29-1/2 in H
- DOE Heating Capacity: 62 MBtu/hr
- Ignition Type: Intermittent Electronic
- Input Capacity: 75 MBtu/hr
- Manufacturer Name: A. O. Smith
- Net IBR Rating: 54 MBtu/hr
- Vent Type: Automatic
- Voltage Rating: 24 VAC
- Features and More
Features
- ASME copper finned tube heat exchanger
- Gasketless heat exchanger design, built-in performance loop
- Self diagnostic ignition control, terminal strip
- Two stage solid state temperature control, outdoor reset with outdoor sensor
- Domestic hot water prioritization, two stage gas valve w/ built in manual shut-off
- 160 psi working pressure, pump relay, automatic reset high limit, ASME pressure relief valve
- Temperature and pressure gauge, automatic vent dampe, built-in draft diverter
- Stainless steel burners, loch-heat ceramic tile combustion chamber
Standards/Approvals/Certifications
- CSA Certified
- ASME Certified
- H
- IBR Standard
