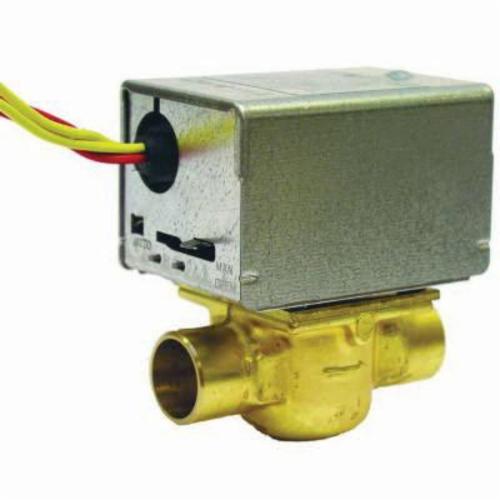

Honeywell Home V8043E1061/U 2-Way Low Voltage Zone Valve, 3/4 in, C, 125 psi, 8 Cv, 24 VAC
HV8043E1061
MFG #: V8043E1061/U
- Amperage Rating: 0.32 A
- Coefficient of Volume: 8 Cv
- Differential: 8 psi
- Dimensions: 4 in H x 3-1/2 in W x 2-3/8 in D
- Electrical Connections: 18 in Lead
- End Style: C
- Manufacturer Name: Resideo Technologies
- Material: Brass
- Nominal Size: 3/4 in
- Pressure Rating: 125 psi
- Series: V8043
- Type: 2-Way Low Voltage
- Voltage Rating: 24 VAC
- Water Temperature: 50 to 200 deg F
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
- Features and More
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
- All models may be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Actuator motor may be replaced without removing the valve body or draining the system
Application
- Hydronic Control
