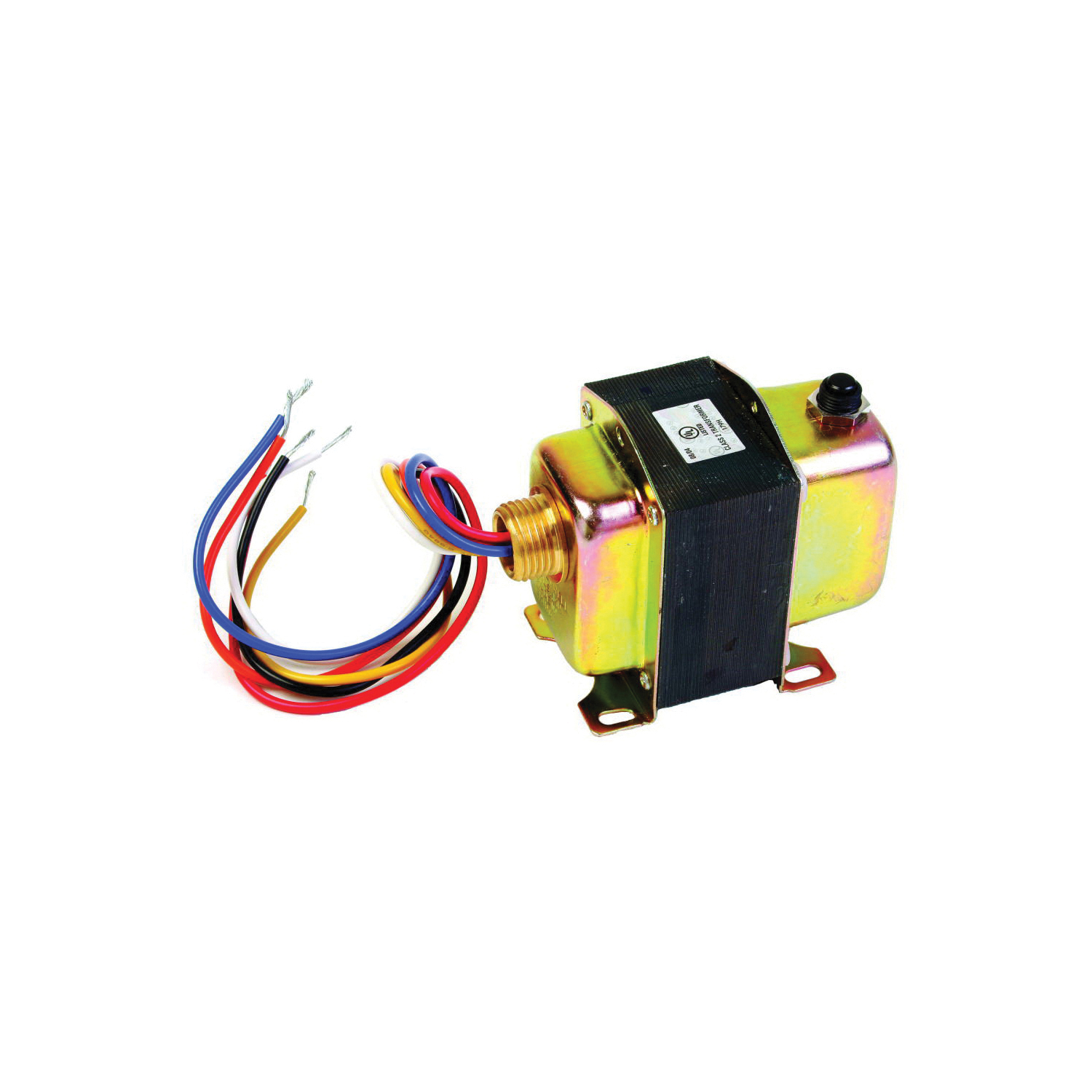

Resideo AT175F1023/U Transformer With 9 in Lead Wires, 120/208/240 VAC Primary, 27.5 VAC Secondary, 75 VA Power Rating
HAT175F1023
MFG #: AT175F1023/U
- Country of Origin: CN
- Dimensions: 2-3/16 in W x 3-15/16 in D x 3-3/16 in H
- Domestic/Import: Import
- Frequency Rating: 60 Hz
- Manufacturer Name: Resideo Technologies
- Mounting Type: Universal
- Power Rating: 75 VA
- Primary Voltage: 120/208/240 VAC
- Secondary Voltage: 27.5 VAC
- Specifications: -20 to 105 deg F
Honeywell 75 VA general purpose transformers power 24 VAC circuits.
- Features and More
Features
- Color coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 in male quick connects (AT175A models only) or Color coded lead wires for primary and secondary connections
- Meets Underwriters Laboratories standard UL 1585
- Identified class 2 not wet, class 3 wet
- Mounting - includes 1/2-14 NPSM conduit connector and locknut for mounting on plate or panel (not included) with 7/8 in knockout and feet for surface mount
Application
- General Purpose Applications
Includes
- Metal End Bells and Button
Standards/Approvals/Certifications
- CSA Certified
- UL File E14881
