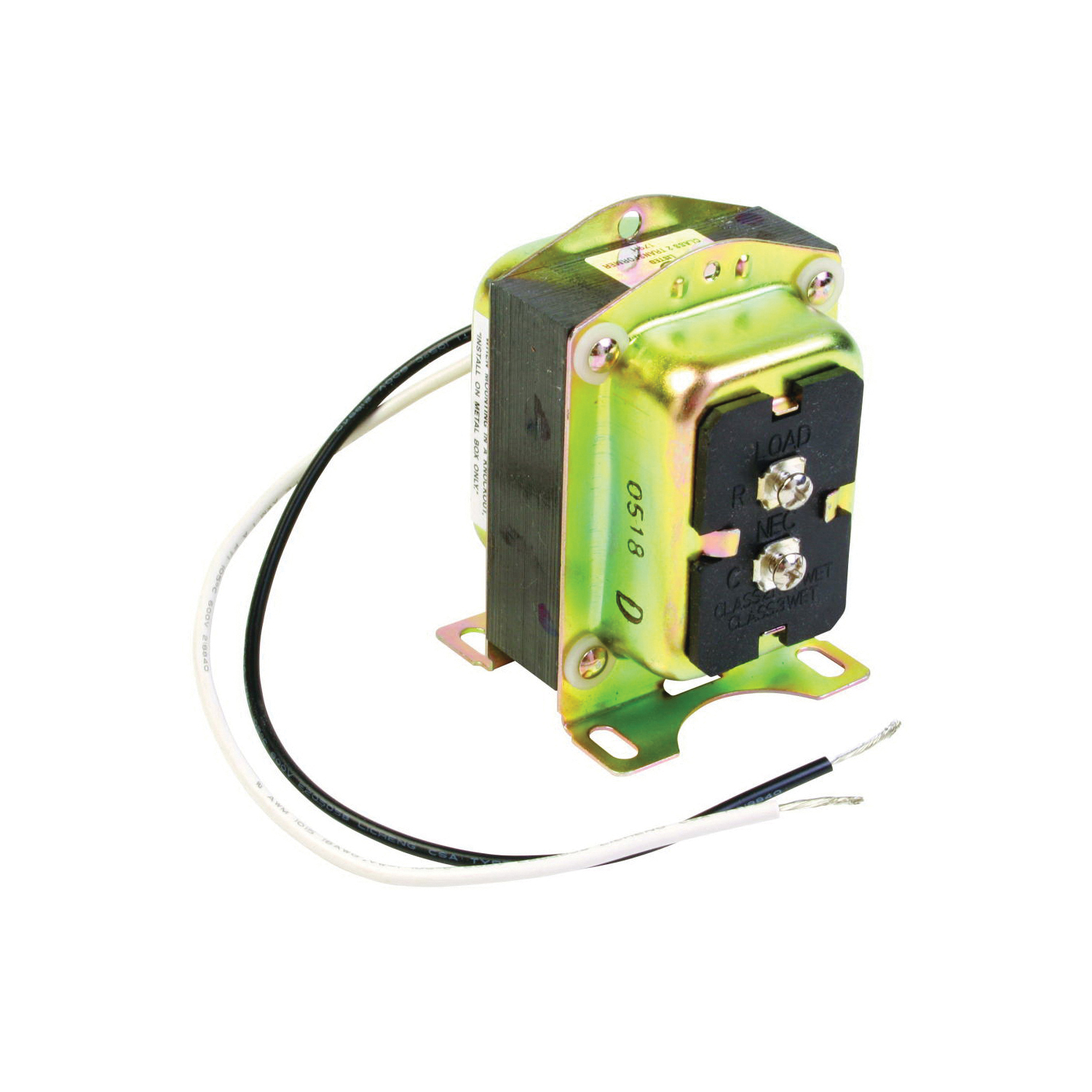

Resideo AT140A1000/U Transformer With 9 in Lead Wires, 120 VAC Primary, 27 VAC Secondary, 40 VA Power Rating

HAT140A1000 MFG #: AT140A1000/U
Resideo AT140A1000/U Transformer With 9 in Lead Wires, 120 VAC Primary, 27 VAC Secondary, 40 VA Power Rating
  • Country of Origin: CN
  • Dimensions: 2-3/8 in W x 3-1/8 in D x 3-3/16 in H
  • Domestic/Import: Import
  • Frequency Rating: 60 Hz
  • Manufacturer Name: Resideo Technologies
  • Mounting Type: Universal
  • Power Rating: 40 VA
  • Primary Voltage: 120 VAC
  • Secondary Voltage: 27 VAC
  • Specifications: -20 to 105 deg F
Honeywell 40 VA general purpose transformers power 24 VAC circuits.
  • Features and More

Features

  • Color coded lead wires for primary connections and screw terminals for secondary connections
  • Includes fixed 1/4 in male quick connects (AT140A models only) or Color coded lead wires for primary and secondary connections
  • Meets NEC class 2 requirements and Underwriters Laboratories standard UL 1585
  • Mounting - foot mounted, plate mounted on 2 x 4 in or 4 x 4 in outlet box, clamp mounted using outlet box knockout or panel mounted

Application

  • General Purpose Applications

Includes

  • Metal End Bells and (2) Screw Terminals Secondary

Standards/Approvals/Certifications

  • CSA Certified
  • UL File No. E14881
  • NEC Class 2 Not Wet Class 3 Wet
