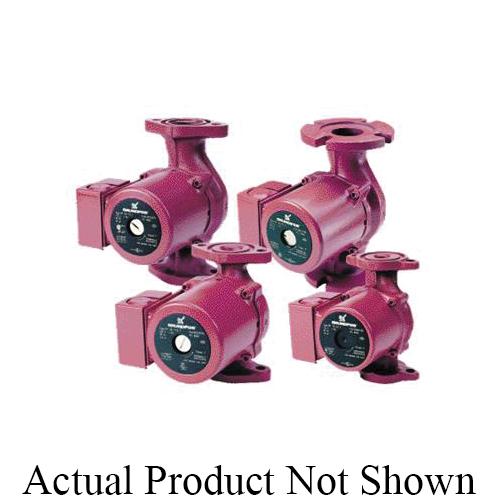

Grundfos 98961763 UPS Canned Rotor Circulator Pump, 17.6 gpm Flow Rate, 115 VAC, 1 ph Phase
GRUPS2699SFC
MFG #: 98961763
- Amperage Rating: 1.3 to 1.8 A
- Bearing Type: Ceramic Radial/Carbon Thrust
- Dimensions: 6 in W x 6-1/2 in H
- Flow Rate: 17.6 gpm
- Frequency Rating: 60 Hz
- Impeller Type: Composite PES
- Manufacturer Name: Grundfos
- Maximum Head: 28.87 ft
- Maximum Pressure: 145 psi
- Phase: 1 ph
- Power Rating: 197 W
- Series: UPS, UPS26-99FS
- Voltage Rating: 115 VAC
UPS pumps constitute a complete range of 3-speed circulator pumps, available both in 50 and 60 Hz. The pumps can be used in both open and closed systems. UPS pumps are of the canned rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
- Features and More
Features
- Maintenance-free
- Low noise and low energy
- Complete range and wide range of accessories
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller
- No additional motor protection is required
- Non-electronically controlled circulator pumps for domestic building with speed control
- Flange pipe connection
- Stainless steel pump housing
- Large stator
- 3-speed motor
Application
- 1 and 2-Pipe Heating Systems
- Main Pumps
- Zone Pumps
- Boiler Shunt Pumps
- Pumps for Heating Surfaces
- Calorifiers
- Underfloor Heating Systems
- Solar Heating Systems
- Heat Pump Systems
- Geothermal Heating Systems
- Heat Recovery Systems
- 2-Pipe Air-Conditioning Systems and Pumps for Refrigeration Units
Includes
- 85900700 Motor
Standards/Approvals/Certifications
- CSA Certified
- UL Listed
