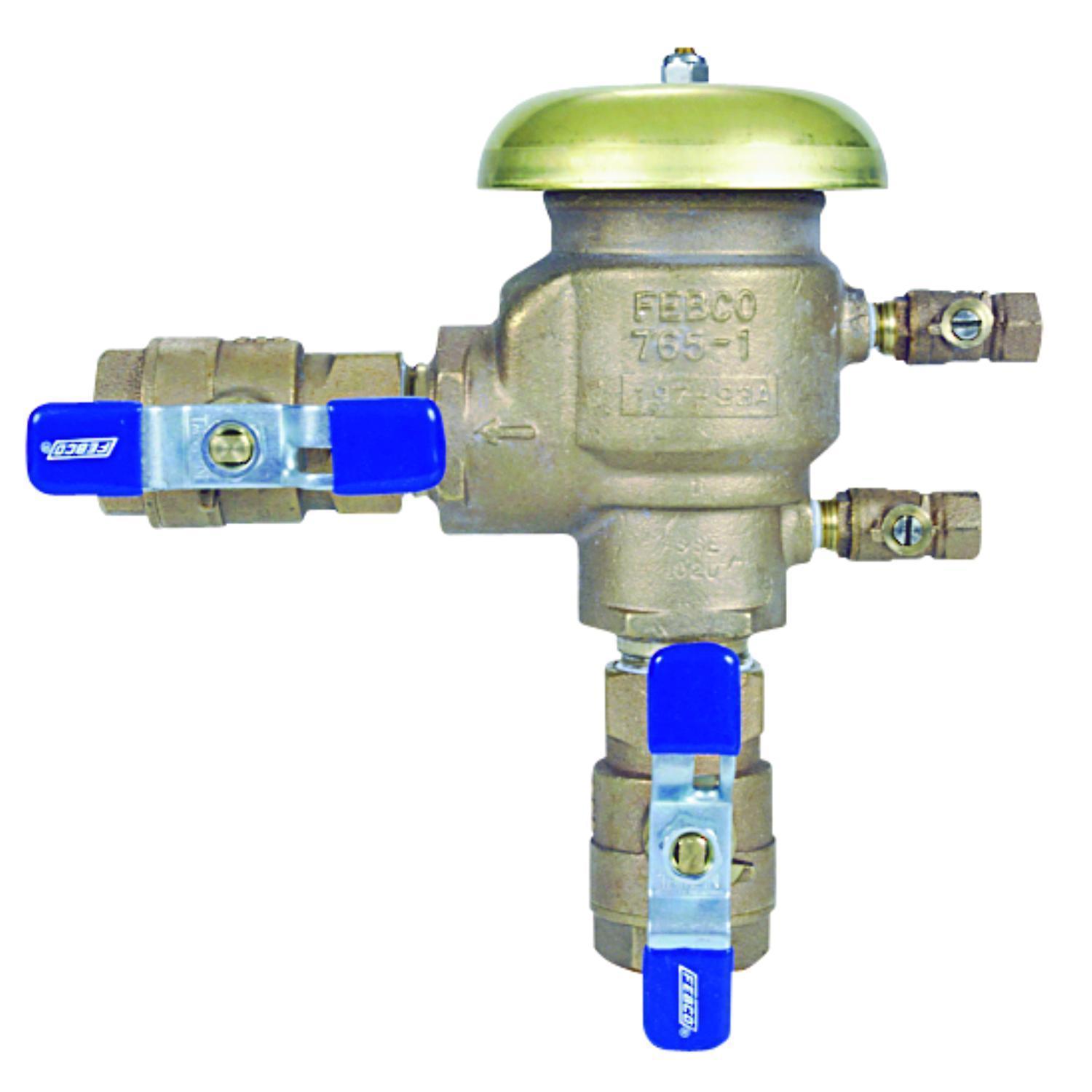

This 3/4 inch pressure vacuum breaker backflow preventer is used to protect against health hazard and non-hazard backsiphonage of toxic or non-toxic liquids in industrial plants, cooling towers, laboratories, laundries, swimming pools and irrigation systems. It has a bronze body, spring loaded check valve, air relief valve with opening port, two resilient seated shutoffs and test cocks, and NPT end connections. This assembly meets the specifications of the USC FCCCHR Manual. The maximum working pressure is 150 psi (10.3 bar) and temperature range is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C).
Brand : Febco®
Backflow Type : Vacuum Breaker
Ball Valve/Gate Valve type : Quarter-Turn Ball Valve
Body Material : Bronze
Country of Origin : CN
Dimensions : 7 in L x 6-1/2 in H
Features
- Bronze body for durability
- Internal parts serviceable inch line from top of unit
- Lightweight poppet seals air opening under minimum flow conditions
- Simple service procedures
- Designed for minimum head loss
- Engineered plastic bonnet protect valve bodies from freeze damage
- Plastic bonnet protects valve body from freeze damage
- Watch Video
Application
- For protect against health hazard and non-health hazard backsiphonage conditions in industrial plants
- cooling towers laboratories
- laundries
- swimming pools and lawn sprinkler systems
Standards/Approvals/Certifications
- ANSI/ASME B1.20.1
- ASSE 1020
- CSA B64.1.2
- UPC Listed
- PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
