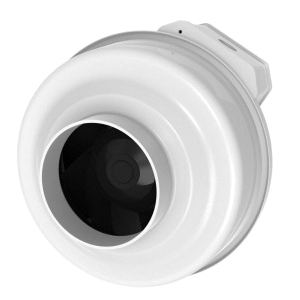

Fantech® 89052 Inline Radon Fan, 120 VAC, 0.484 A, 166 cfm Flow Rate, Plastic Housing

FANRN2
  • Amperage Rating: 0.484 A
  • Dimensions: 9-1/4 in H x 10 in W
  • Flow Rate: 166 cfm
  • Frequency Rating: 60 Hz
  • Housing Material: Plastic
  • Inlet Size: 4 in
  • Manufacturer Name: Fantech
  • Motor Speed: 2533 rpm
  • Outlet Size: 4 in
  • Power Rating: 58 W
  • Voltage Rating: 120 VAC
  • Features and More

Features

  • UV-resistant, UL listed durable plastic
  • Watertight electrical terminal box
  • Totally enclosed for protection
  • Automatic reset thermal overload protection
  • Zero leakage
  • Active radon mitigation systems employ specialized fans to exhaust radioactive radon gas from underneath building structures via a sealed pipe system
  • These systems are designed to remove radon gas before it migrates into the building envelope
  • The Rn2 is ideally tailored performance curve for a vast majority of your mitigations that require medium air flow and suction
  • The fan features a fully sealed plastic housing. the inlet and outlet pieces of the housing are joined via a vibration welding process
  • The process uses transverse, reciprocating motion under pressure at the point of contact
  • The friction produces heat that melts the thermoplastic material at the interface
  • The melted material quickly re-solidifies, resulting in a fused, single piece housing
  • The fused seam is inherently air tight, very strong and permanent
  • This air tight product ensures that efficiency is not lost and contaminants are not spilled due to leakage

Application

  • For medium suction
  • medium airflow applications

Standards/Approvals/Certifications

  • Buy American Act Compliant
  • cULus Recognized
  • HVI 2100
  • UL Listed
  • ENERGY STAR Certified
