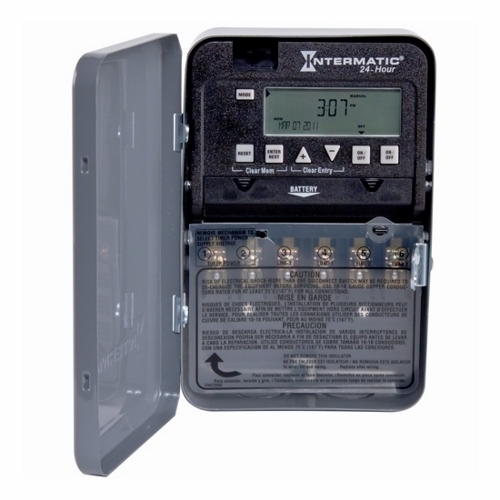

Intermatic® ET1125C ET1100 Electronic Timer Switch, 1 min to 23 hr 59 min Setting, 120/277 V AC, 1, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles
Part #: ET1125C
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.
Brand : Intermatic®
Amperage Rating : 30 A
Battery Type : AAA Alkaline
Contact Form : 1NO 1 Form A SPST, 1NO/SPST
Country of Origin : CN
Dimensions : 200 mm H x 130.2 mm W x 87.3 mm D
- Program can be repeated on a daily basis
- 50/60 Hz frequency
- 1 hp at 120 VAC, 20 hp at 240 VAC
- To the minute programming for accurate load control and reduced energy costs
- Up to 28 set points or events
- Automatic daylight saving time ON/OFF adjustment
- Non-volatile EEPROM memory protects programming indefinitely
- Temporary override or permanent manual override
- Astronomic models enable dusk-to-dawn scheduling
- Steel enclosure
- 30 A at 120/240 VAC (resistive NO), 20 A at 28 VDC (resistive NO), 30 A at 120/240 VAC (inductive NO), 5 A at 120/240 VAC (tungsten NO), 20 A at 120 to 277 VAC (ballast NO)
- RoHS Compliant, cCSAus Certified, California Title 24 Compliant, HVACR Approved, Title CA 20 Listed
Features
- Selector switch to determine input voltage between 120-277 VAC
- To-the-minute accuracy
- Temporary override or permanent manual override
- Automatic Daylight Saving Time adjustment
- Astronomic models enable dusk-to-dawn scheduling
Application
- Interior Lighting
- Exterior Lighting
- Electric Pumps
- Electric Motor Control and Various Other Electrical Loads
- Indoor
- HVACR and Industrial Applications
Standards/Approvals/Certifications
- cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
