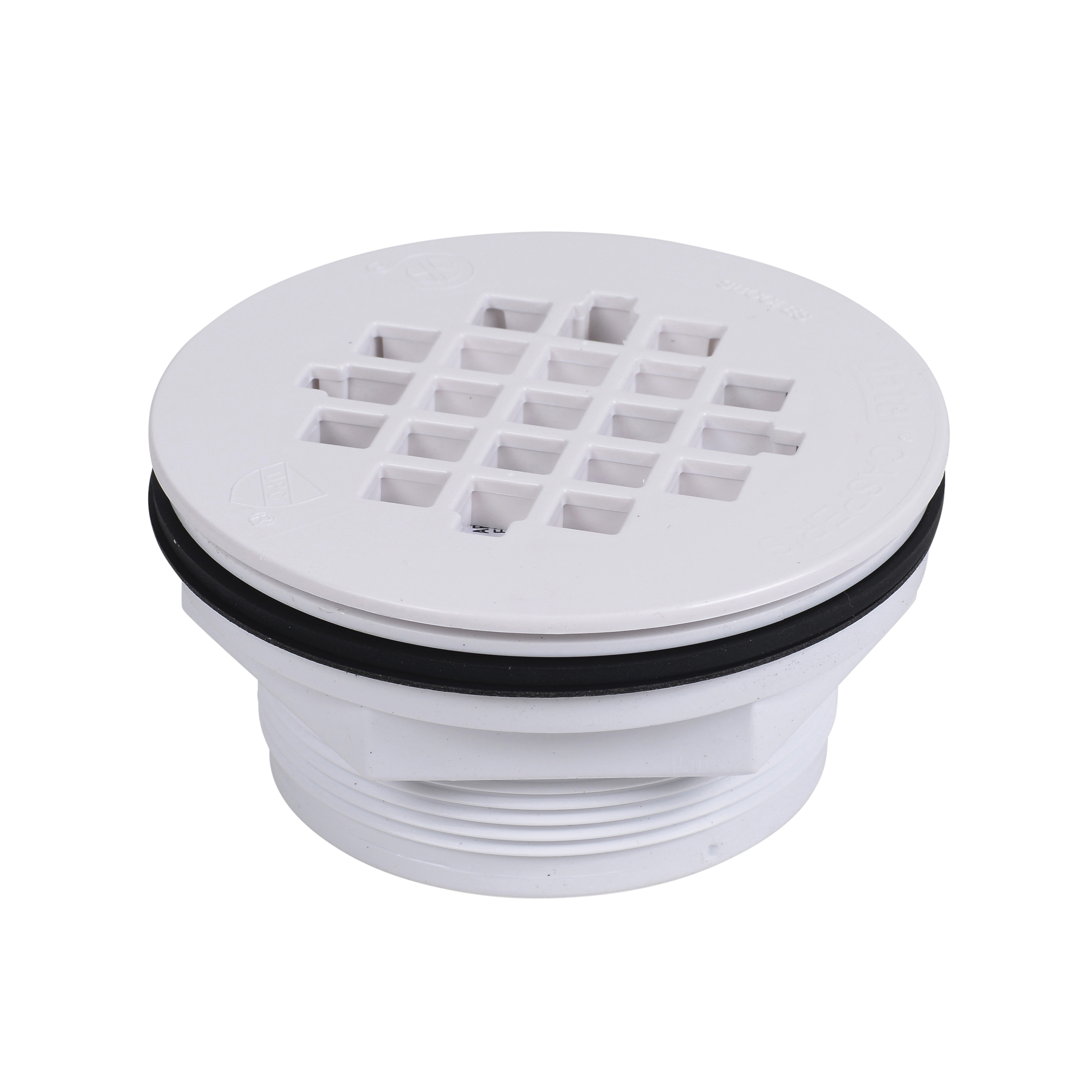

Oatey® 42075 101PNC Shower Drain With Plastic Strainer, 2 in Nominal, Push-On Connection, PVC Drain, Domestic

DRAIN101PNC MFG #: 42075
  • Connection Type: No Caulk, Push-On
  • Country of Origin: US
  • Domestic/Import: Domestic
  • Manufacturer Name: Oatey
  • Nominal Size: 2 in
  • Series: 101PNC
Oatey® 101 PNC Series Brass and Plastic No-Calk Shower Drain is designed to seal the drain body to a preformed shower stall base with a fiber and rubber washer.
  • Features and More

Features

  • Drain is fixed to the drain pipe from above the shower base
  • Drain body is sealed to the shower base with a fiber and rubber washer
  • 2 in SCH 40/STD DWV pipe is secured with a mechanically compressed gasket that does not require caulking
  • Drain top accommodates 4-1/4 in universal snap-tite strainers
  • Can be used with 1-1/2 in SCH 40/STD DWV pipe and 1-1/2 in or 2 in copper DWV pipe when caulking gasket is replaced
  • Fiber and rubber gasket provide a tight seal to the base
  • https://youtu.be/BaKfevgqzg8

Application

  • For use with all preformed shower stall bases and slab construction

Includes

  • Drain Tightening Wrench

Standards/Approvals/Certifications

  • UPC Listed
