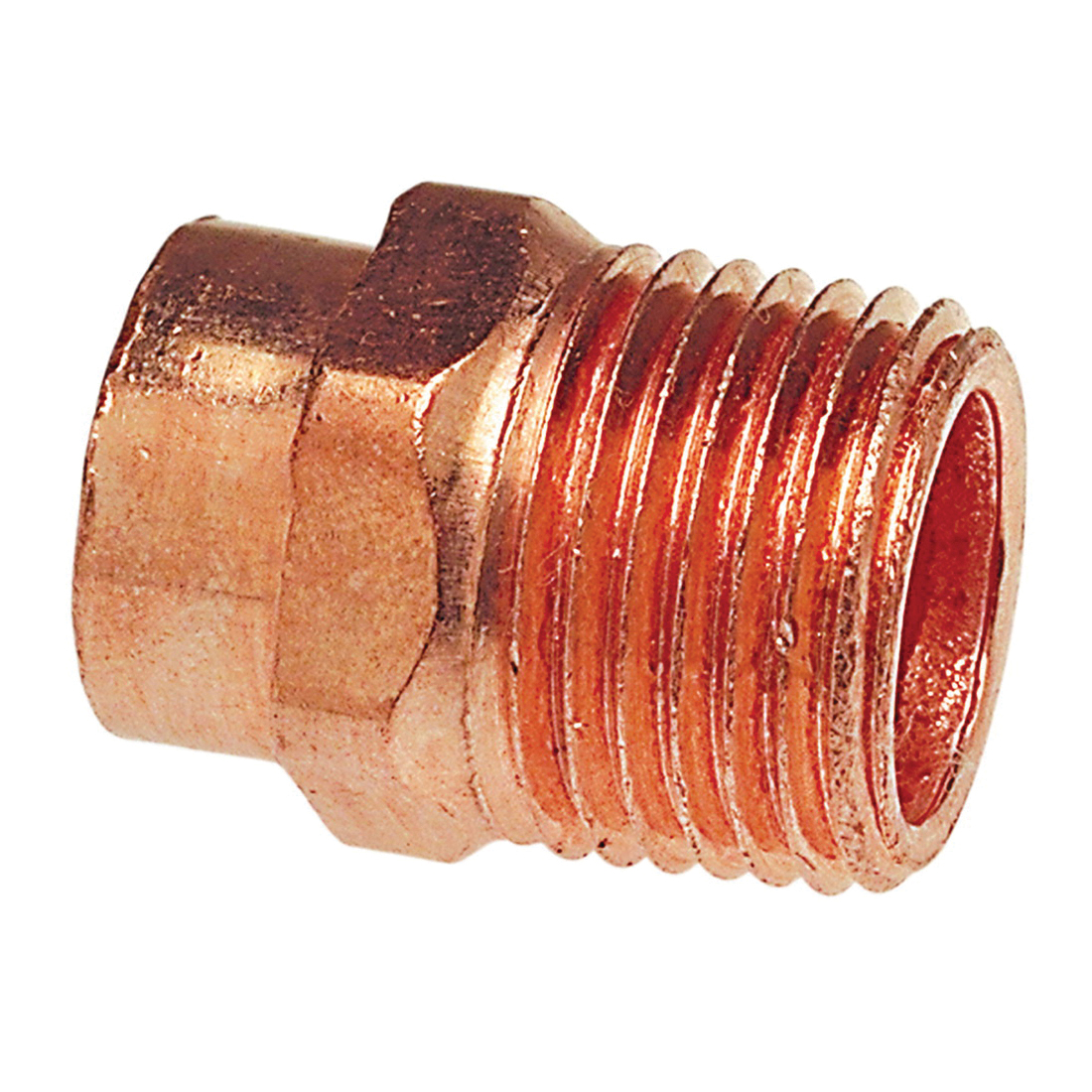

NIBCO® 9031200 604R Adapter, 3/4 x 1/2 in Nominal, C x MNPT End Style, Copper, Domestic

CF604IG MFG #: W 01147
  • Country of Origin: US
  • Domestic/Import: Domestic
  • End Style: C x MNPT
  • Fitting/Connector Type: Adapter
  • Manufacturer Name: NIBCO Inc.
  • Material: Copper
  • Nominal Size: 3/4 x 1/2 in
  • Series: 604R
The male Adapter features a solder cup and MNPT thread. These fittings provide a means for adapting a solder connection to a threaded connection. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO® copper fittings are manufactured in an ISO 9001 certified facility and backed by a 50 years limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
  • Features and More

Features

  • Dezincification-resistant
  • Material and workmanship per ASME B16.22
  • Material and workmanship per MSS SP-104
  • NFPA 99 health care facilities gas and vacuum systems and the compressed gas association, pamphlet G4.1 (medical gas)

Application

  • For residential and commercial systems such as potable water
  • air conditioning and refrigeration

Standards/Approvals/Certifications

  • ASME B16.22
  • ASTM B75 Alloy C12200
  • MSS SP-104
  • NSF/ANSI 61/372
  • UL 207 Recognized to 700 psi
  • NFPA99 and CGA Pamphlet G-4-1

Warranty

  • 50 years Limited
