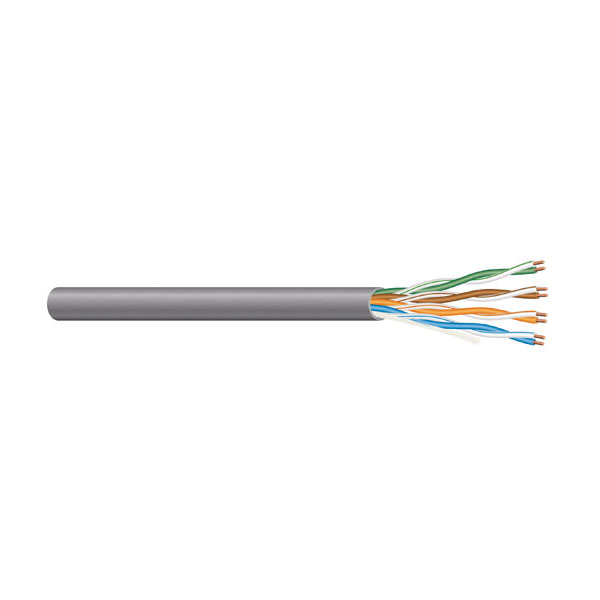

CAT5E 24/8 4PR WIRE GRA
Part #: CAT5E
MFG #: 6444434
TAPPAN™ Riser Cable, Type CMR Cat 5e Non-Plenum Unshielded, 300 VAC, 4 Pair Conductors, Solid Bare Copper Conductor, 24 AWG Conductor, 0.2 in Outside Dia, 1000 ft Reelex Length, 9.38 Ohm, Polyethylene Insulation, PVC, Gray, -20 to 75 deg C
Brand : Southwire®
- 350 MHz operating frequency, providing high performance headroom
- 3% DC resistance unbalance (max) individual pair
- 100 +/-15 Ohm at 1 to 100 MHz characteristic impedance
- 1.4 in minimum bend radius
- 25 lb maximum pulling force
- 44.9 dB/100 M attenuation
- 15 pF/ft nominal capacitance at 1 kHz
- 72% nominal velocity of propagation
- 45 ns/100 m maximum delay skew
- 335 category 5e cable
- Bluewhite/blue, orange white/orange, green white/green, brown white/brown color pair cable
- TIA 568C.2 ETL certified, UL 1666, NEC®, NFPA 262, UL 910, ANSI/TIA/EIA862, ICEA S90661, UL 444, ISO Certified, IEC 11801 Ed 2, cUL Listed, ETL Listed and RoHS Compliant
