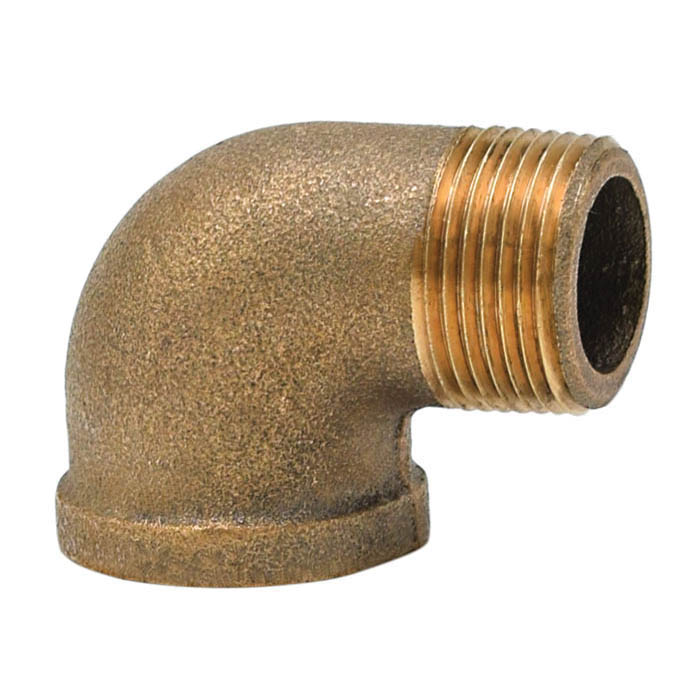

LEGEND 310-044NL Lead Free Street Elbow, 3/4 in Nominal, MNPT x FNPT End Style, 125 lb, Bronze, Import

BRASS90STI MFG #: 310-044NL
  • Country of Origin: CN
  • Domestic/Import: Import
  • End Style: MNPT x FNPT
  • Fitting/Connector Type: 90 deg Elbow
  • Manufacturer Name: Legend
  • Nominal Size: 3/4 in
  • Pressure Class: 125 lb
  • Pressure Rating: 125 psi
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
  • Features and More

Features

  • Manufactured using the latest technologies for material consistency and dimensional tolerances
  • Classified as a Class 150 malleable iron fitting, (rated at 150 psi) they are test pressure rated by UL and factory Mutual at 300 and 500 psi, configuration-specific

Application

  • Potable Water Applications

Standards/Approvals/Certifications

  • ANSI/ASME B16.15/B1.20.1
  • ASTM B584
  • FM Approved
  • ISO Certified
  • NSF/ANSI 372
  • U.S. Federal Public Law 111-380
  • UL Listed
