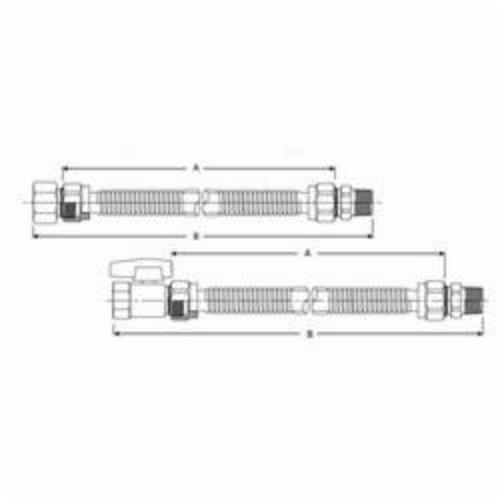

EASTMAN® 30YE555424 Gas Connector, 3/4 x 3/4 in Nominal, FIP x MIP End Style, 150000 Btu/hr Flow Rate, 24 in L, Stainless Steel, Import
Part #: BCSSFLEX24I
MFG #: 30YE555424
The Eastman 5/8-IN OD gas connector is designed to connect most major brands of gas ranges, boilers, and high-usage appliances to a shut-off valve. The connector is certified for use with most ranges and boilers with gas ratings up to 150,000 BTUs. Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use. Includes (1) 24-IN 5/8-IN OD epoxy-coated gas range connector, (1) 3/4-IN FIP fitting, (1) 3/4-IN MIP (Tapped 1/2-IN FIP) fitting.
Brand : EASTMAN®
Country of Origin : CN, US
Diameter : 5/8 in
Domestic/Import : Domestic, Import
End Style : FIP x MIP, FNPT Straight x MNPT Straight
Finish : Polymer Blend Coated
Features
- Gas connector and fittings used for Natural Gas and Liquid Propane
- Easy to install, no special tools required
- Stainless steel flexible connectors with deep corrugations enhance flexiblity
- Epoxy coating protects against corrosion, stains, and UV
Application
- For use with most ranges and boilers with gas ratings up to 150
- 000 BTUs
Includes
- (1) 24-IN 5/8-IN OD epoxy-coated gas range connector
- (1) 3/4-IN FIP fitting
- (1) 3/4-IN MIP (Tapped 1/2-IN FIP) fitting
