BrassCraft® G2R17X C G2™ 1/4 Turn Angle Stop, 1/2 x 3/8 in Nominal, FNPT x Compression, 125 psi, Brass Body, Polished Chrome, Domestic

BCG2R17XC MFG #: G2R17X C
  • Body Material: Brass
  • Country of Origin: US

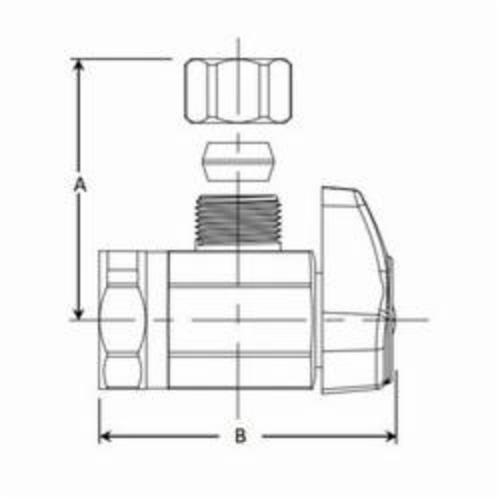

  • Dimensions: 1.09 x 1.95 in
  • Domestic/Import: Domestic
  • End Style: FNPT x Compression
  • Manufacturer Name: BrassCraft Manufacturing
  • Media: Water
  • Nominal Size: 1/2 x 3/8 in
  • Pressure Rating: 125 psi
  • Series: G2™
  • Softgoods Material: Santoprene Stem Barrel/EPDM Stem O-Ring
  • Trim Material: C36000 Brass
Manufactured to the highest quality standards, G2™ Series 1/4-Turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4-Turn operation with positive shut-off.
  • Features and More

Features

  • Full flow operation with no waterway obstructions
  • Corrosion-resistant handle is plated in an attractive chrome plated finish
  • Easy-to-remove handle with screw attachment protects against accidental operation during rough-in
  • Installation ready with pre-assembled tube insert
  • No special installation tools required
  • For use with Copper, PEX and CPVC

Application

  • Residential and Commercial

Standards/Approvals/Certifications

  • ASME A112.18.1
  • CSA B125.1 File No.0645/204593
  • cSAus Certified
  • IAPMO Listed
  • UPC Listed
