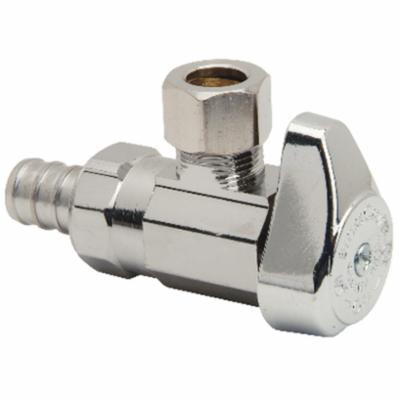

BrassCraft® G2BRPX19X C G2™ 1/4 Turn Angle Stop, 1/2 x 3/8 in Nominal, PEX Crimp Barb x Compression, 125 psi, Brass Body, Polished Chrome, Domestic

  • Body Material: Brass
  • Country of Origin: US
  • Dimensions: 1.02 x 2.06 in
  • Domestic/Import: Domestic
  • End Style: PEX Crimp Barb x Compression
  • Manufacturer Name: BrassCraft Manufacturing
  • Media: Water
  • Nominal Size: 1/2 x 3/8 in
  • Pressure Rating: 125 psi
  • Series: G2™
  • Softgoods Material: Rubber Stem Barrel/Rubber O-Ring
  • Trim Material: Brass
Manufactured to the highest quality standards, G2™ Series 1/4 turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4 turn operation with positive shut-off.
  • Features and More


  • Positive 1/4 turn shut-off
  • Full flow operation with no waterway obstructions
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Push connect technology
  • No special installation tools required
  • For use with Copper, PEX and CPVC


  • Residential and Commercial


  • ASME A112.18.1
  • CSA B125.1 File No.0645/204593
  • IAPMO Listed
