BrassCraft®

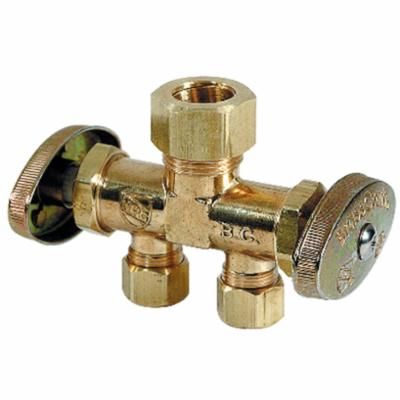

BrassCraft® CR1901DVSX R Multi-Turn Dual Outlet/Dual-Shut-Off Straight Stop, 1/2 x 3/8 x 3/8 in Nominal, Compression, 125 psi, Brass Body, Rough Brass, Domestic

BCCR1901DVSXR MFG #: CR1901DVSX R
BrassCraft® CR1901DVSX R Multi-Turn Dual Outlet/Dual-Shut-Off Straight Stop, 1/2 x 3/8 x 3/8 in Nominal, Compression, 125 psi, Brass Body, Rough Brass, Domestic
  • Body Material: Brass
  • Country of Origin: US
  • Dimensions: 1.25 x 4.3 in
  • Domestic/Import: Domestic
  • End Style: Compression
  • Finish: Rough Brass
  • Manufacturer Name: BrassCraft Manufacturing
  • Media: Water
  • Nominal Size: 1/2 x 3/8 x 3/8 in
  • Pressure Rating: 125 psi
  • Softgoods Material: Nitrile Rubber Bib, Packing Washer
  • Trim Material: Brass/POM
  • Type: Multi-Turn
Unlike a standard dual outlet stop, the BrassCraft® dual outlet, dual shut-off 1/4-Turn ball stop allows you to turn off the water to one source while working on another. For instance, you can still run hot water out of your faucet, but turn off the water supply to your dishwasher and not require two separate stops to do it. Saves you installation time and money.
  • Features and More

Features

  • Code approved replacement where separate shut-offs are required for two lines
  • Straight inlet to outlet design (same-side outlets) is great for installations in tight spaces
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-in
  • Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F
  • https://www.youtube.com/watch?v=kNaVBHn1vGo

Application

  • For Dishwashers
  • Ice Makers
  • Water Filters and Instant Hot Water Dispensers

Standards/Approvals/Certifications

  • ASME A112.18.1
  • CSA B125.1 File No.0645/204593
  • IAPMO Listed
