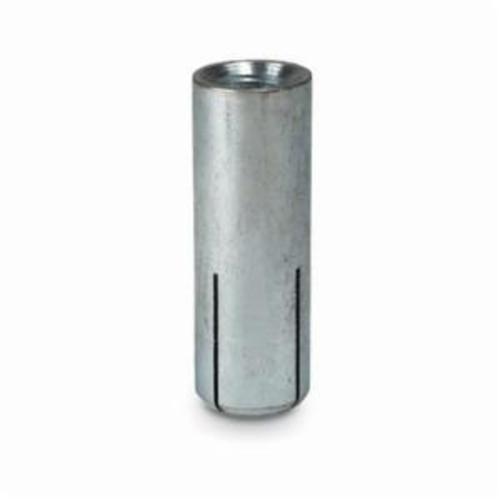

B-Line ADI-37 Smooth Wall Drop-In Anchor, 3/8 in, Steel, 1/2 in Drill, 1-9/16 in D Min Embedment

ADI37 MFG #: DIA37
B-Line ADI-37 Smooth Wall Drop-In Anchor, 3/8 in, Steel, 1/2 in Drill, 1-9/16 in D Min Embedment
  • Bolt/Rod Size: 3/8 in
  • Country of Origin: CN
  • Drill Size: 1/2 in
  • Manufacturer Name: Eaton, Simpson Strong-Tie
  • Material: Carbon Steel, Steel
  • Minimum Embedment Depth: 1-9/16 in
  • Overall Length: 1-9/16 in
  • Shear Strength: 1145 lb, 810 lb at 2000 psi/925 lb at 3000 psi/1040 lb at 4000 psi for Concrete
  • Tensile Strength: 1045 lb, 600 lb at 2000 psi, 795 lb at 3000 psi, 990 lb at 4000 psi for Concrete
  • Thread Length: 5/8 in
  • Thread Size: 3/8-16
  • Thread Type: UNC
  • Type: Smooth Wall
Eaton offers a full line of B-Line series fastener hardware and accessories, such as metal stud grommets, machine screws, machine square nuts, sheet metal screws, self-drilling sheet metal screws, pipe sleeve fasteners, accessory nuts, reference wire fasteners and more.
  • Features and More

Features

  • Designed for use in solid concrete
  • Flanged (lipped) version installs flush for easy inspection and standardizes rod heights
  • Smooth wall drop-in can be installed flush mounted or below the base material surface
  • 1145 lb at 4000 psi shear strength
  • 1045 lb at 4000 psi tensile strength

Application

  • For overhead applications such as suspending cable tray
  • strut
  • pipe supports and lighting
  • anchors
  • drop-in-anchor and smooth wall

Includes

  • Setting Tool

Standards/Approvals/Certifications

  • FM Approved
  • UL Listed
