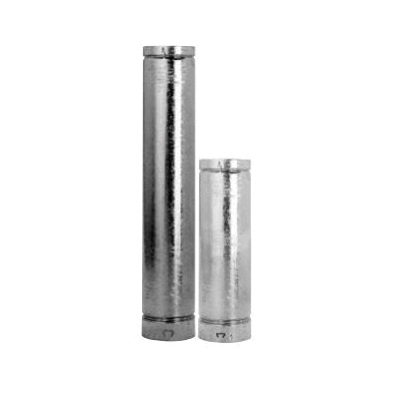

Selkirk® by Duravent LockTab® 104036 RV Series Type B Small Diameter Double Wall Round Gas Vent Pipe, Steel, 4 in Dia x 3 ft L, Galvanized, Domestic
4RV3
MFG #: 104036
- Country of Origin: US
- Diameter: 4 in
- Domestic/Import: Domestic
- Finish: Galvanized
- Length: 3 ft
- Manufacturer Name: Duravent Group, Selkirk Corporation
- Material: Steel
- Series: RV Series
- Thickness: 0.012 in
- Type: Type B Small Diameter Double Wall Round
Our non-positional lock system on the Selkirk® by Duravent RV Gas Vent is the best lock system on the market today. The incorporation of the LockTab® feature simply improves our lock system by adding flexibility and meeting market needs.
- Features and More
Features
- The locktab is located on the female end of the gas vent
- Assemble the gas vent sections
- The locktab is then depressed with a thumb or blunt object such as a screwdriver into the lock channel of the male end
- To disengage the locktab, pry it up by using a screwdriver or knife blade
- The RV line of Selkirk round vent pipe and fittings is designed for use on approved gas appliances in residential and light commercial and industrial applications
- Round vents for large appliances will be found in the QC section which follows
- The Outside Diameter of RV is approximately 1/2 in larger
- Outer material is 28 ga galvanized steel and inner liner is aluminum
- Easy to assemble and can be combined to obtain the required installation height
- Sectional overlap of 1.5 in and hence net assembled length is 1.5 in less than listed lengths
- Inner liner of aluminum alloy 1100, 3003, 3104, 3105 or 5010
- Outer wall of UL recognized G90 galvanized steel
Application
- For venting negative pressure gas-burning appliances
Standards/Approvals/Certifications
- NFPA 211/54
- UL 441
- ULC S605
Warranty
- Lifetime
